LAUNCH X431 PRO3S+ V5.0 — 2026 Elite Bi‑Directional Diagnostic Scanner
1. Product Overview
LAUNCH X431 PRO3S+ V5.0 is the newest generation OE‑level all‑system diagnostic tool from LAUNCH, upgraded on the basis of the classic PRO3S+ series. It features optimized hardware, DBSCAR VII Bluetooth VCI, CAN FD & DOIP support, topology mapping, ECU online coding, 55+ reset services, and 2‑year free software updates. Designed for professional workshops and technicians, it delivers dealer‑level diagnostics, bidirectional control (active test), and wide vehicle coverage for global petrol & diesel vehicles (including 24V heavy‑duty trucks with optional module).

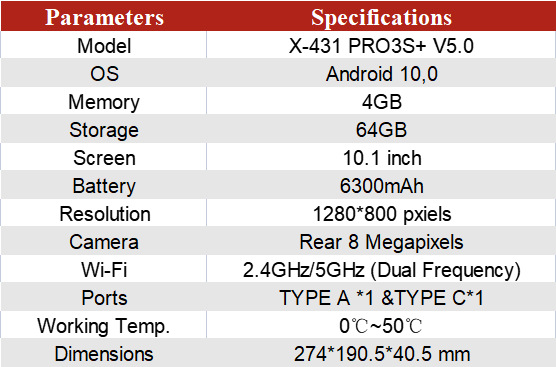

2. Hardware Specifications (Upgraded vs. V2.0)
Operating System: Android 10.0 (fast & stable)
Processor: 2.0GHz 4‑core CPU (faster boot & diagnosis)
RAM / ROM: 4GB RAM + 64GB ROM (expandable up to 128GB)

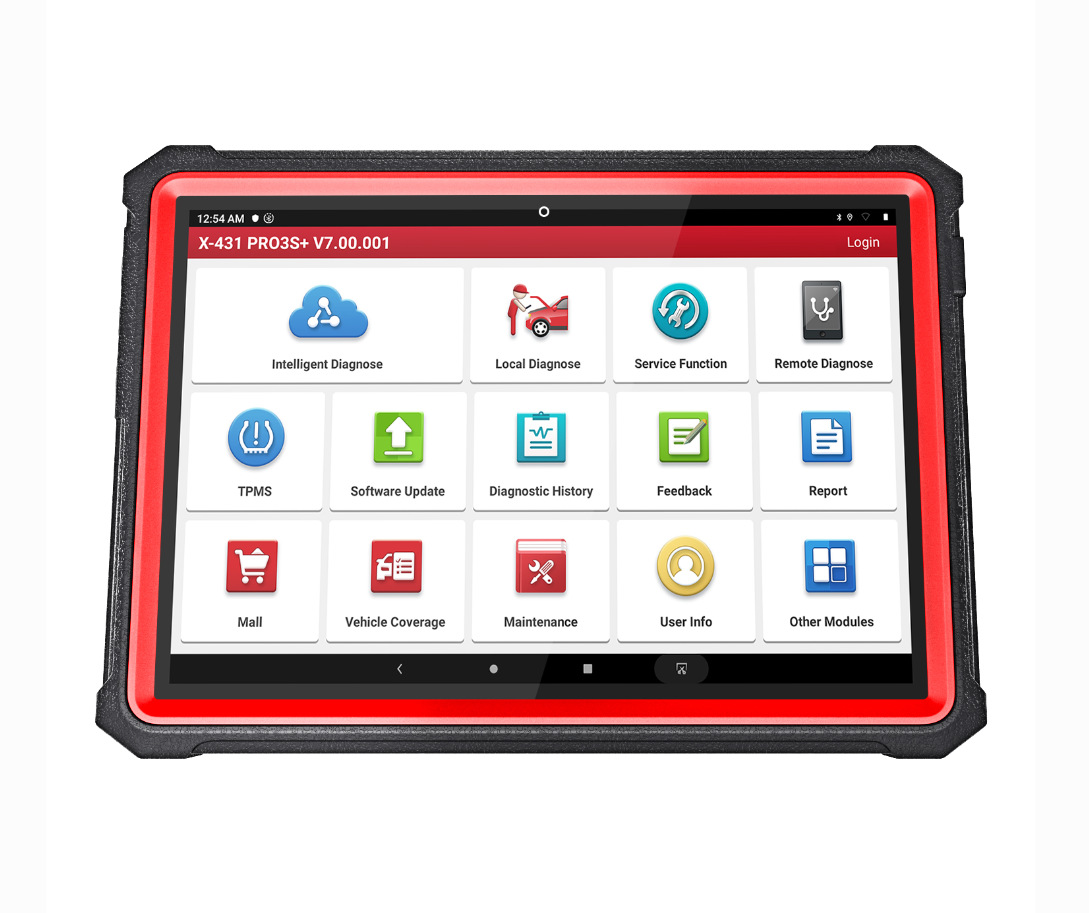

Display: 10.1” IPS touch screen, 1280×800 high resolution
Battery: 6300mAh large capacity (all‑day use)Launch X431
Connectivity: Wi‑Fi 2.4GHz/5GHz, Bluetooth 5.0, USB‑C
VCI Connector: DBSCAR VII Bluetooth VCI (supports CAN FD / DOIP protocols)
Camera: 8MP rear camera (VIN scan & document capture)
Working Temp: 0℃ ~ 50℃; Storage: −20℃ ~ 70℃
Key Upgrades over PRO3S+ V2.0:
✅ Larger memory & faster CPU
✅ Higher‑resolution display
✅ Bigger battery capacity
✅ New DBSCAR VII VCI with CAN FD/DOIP
✅ More OE functions & wider coverage

3. Core Diagnostic Functions (OE‑Level)
3.1 All‑System Full Diagnosis
Covers all electronic control units (ECUs) in the vehicle:
ECM (Engine), TCM (Transmission), ABS, SRS (Airbag), BCM, IMMO, BMS, TPMS, SAS, Fuel System, A/C, Lighting, etc.Launch X431
VIN Scan Quick Test: One‑click auto VIN recognition via Wi‑Fi
Manual Diagnosis: Full menu for deep troubleshooting
Basic operations: Read DTCs, Clear DTCs, Read Live Data Stream, Freeze Frame, ECU InfoLaunch X431
3.2 Bi‑Directional Control (Active Test)
Advanced bidirectional testing to activate components directly:
Injectors, fuel pumps, solenoids, valves, motors, relays, lights, windows, sunroof, door locks, etc.
Test actuators without disassembly; save time & labor
3.3 Topology Mapping (New)
Intuitive color‑coded topology diagram of all ECUs & communication links
Real‑time status display; fast pinpoint of faulty modules / wiring
3.4 ECU Coding & Programming
ECU Online Coding: For VW / Audi / Skoda / Seat (VAG group)
Offline Coding: For BMW, Benz, etc.
Module Replacement Coding: Match new ECUs (engine, transmission, ABS, etc.)
Hidden Function Activation: Enable/disable factory options (e.g., window roll‑up, mirror fold, sport mode)
3.5 55+ Special Reset & Service Functions
Oil Reset, EPB Reset, SAS Steering Angle Calibration, TPMS Reset, DPF Regeneration, IMMO Key Programming, Battery Matching, Throttle Adaptation, Injector Coding, ABS Bleeding, Airbag Reset, Headlight Calibration, Gearbox Adaptation, and more
3.6 VAG Guided Functions (Free)
Step‑by‑step guided diagnosis for VW / Audi / Skoda / Seat
Covers complex systems: engine, gearbox, ABS, SRS, etc.
Reduces misoperation & improves accuracy
3.7 AutoAuth for FCA SGW (Free)
One‑click authorization for FCA (Chrysler / Dodge / Jeep / Alfa Romeo / Fiat) vehicles after 2017
Bypass SGW security gateway; enable full access to all ECUs
3.8 ADAS Calibration
Calibrate camera‑based & radar‑based ADAS systems: lane departure warning, adaptive cruise control, automatic emergency braking, etc.
Works with ADAS Mobile / ADAS Pro accessories
3.9 Heavy‑Duty Truck Diagnosis (Optional)
Compatible with LAUNCH Heavy Duty Module (sold separately)
Diagnose 24V diesel trucks & buses
Supports J1939, J1708, CAN protocols

4. Vehicle Coverage
Global Coverage: Over 200,000+ car models from 150+ brands worldwideLaunch X431
Europe: VW, Audi, BMW, Mercedes‑Benz, Volvo, PSA, Renault, Fiat, Alfa Romeo, Jaguar, Land Rover, etc.
America: Ford, GM, Chrysler, Dodge, Jeep, Tesla, etc.
Asia: Toyota, Honda, Nissan, Hyundai, Kia, Subaru, Mazda, Mitsubishi, Suzuki, etc.
China: All mainstream Chinese brands
EV & Hybrid: Supports new energy vehicles (battery, motor, BMS, OBC, etc.)

5. Software & Update Service
2 Years Free Software Updates: Lifetime maintenances with paid subscription after 2 years
Multi‑Language: 30+ languages (English, Spanish, French, German, Russian, Arabic, etc.)
SmartLink Remote Diagnosis: Invite experts for remote support; share diagnostic reports
Cloud Health Report: Generate & share vehicle health reports via Wi‑Fi

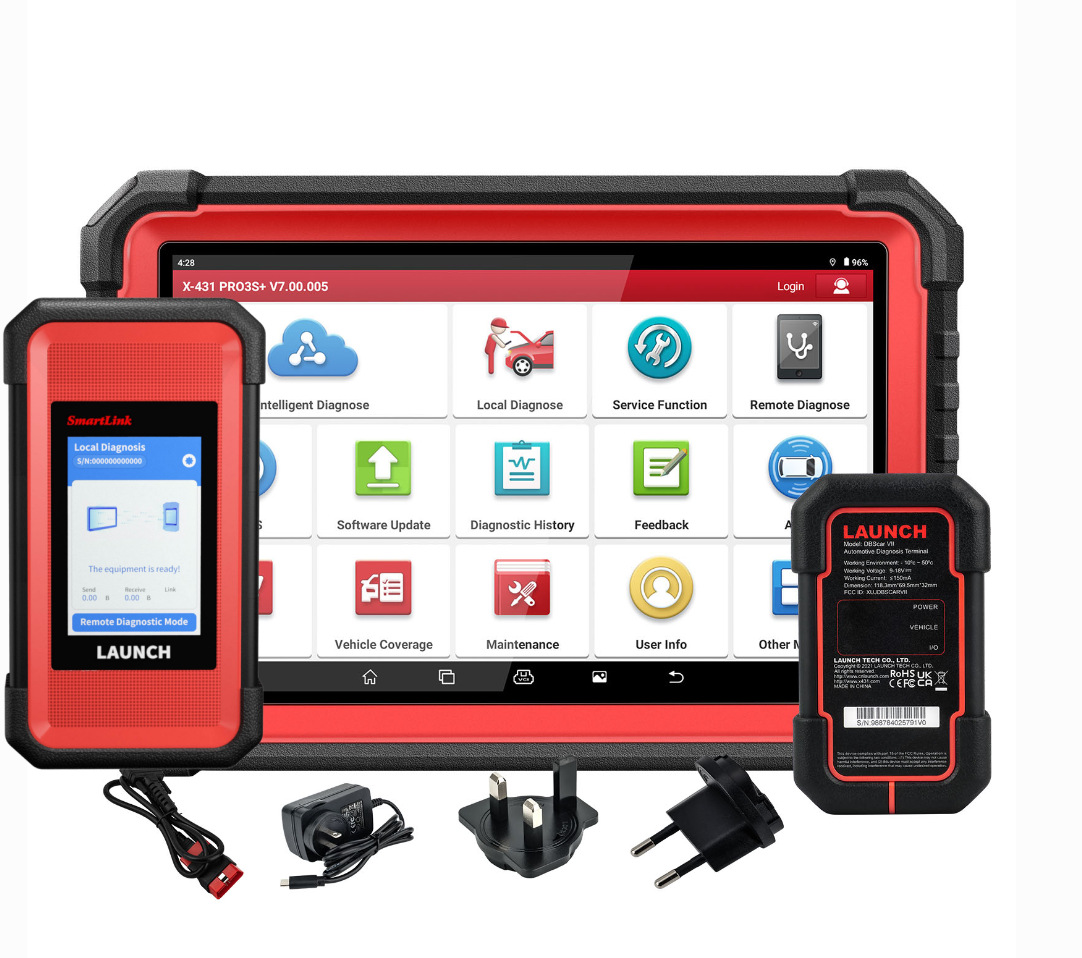

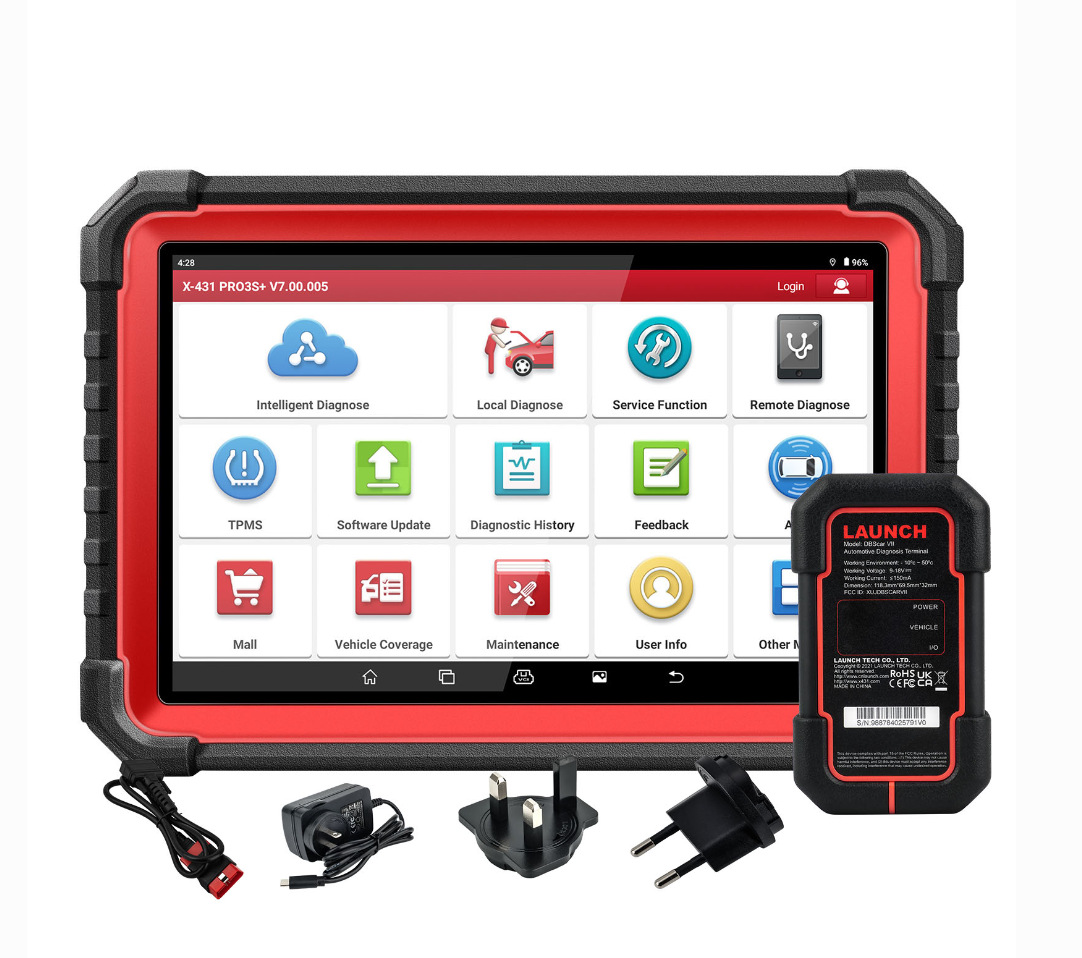

6. Package Includes
X431 PRO3S+ V5.0 Tablet
DBSCAR VII Bluetooth VCI Connector
OBD II 16‑pin Cable
Multi‑brand Non‑16‑pin Adapter Kit
Power Adapter & Cables
User Manual & Quick Start Guide
Hard Plastic Carrying Case (shockproof & waterproof)

7. Key Advantages
✅ 2026 New Elite Version: Hardware & function upgrade over V2.0
✅ OE‑Level Power: Dealer‑level diagnosis, coding & topology mapping
✅ Bi‑Directional Active Test: Save time on component testing
✅ CAN FD & DOIP Ready: Support latest vehicle protocols
✅ 55+ Service Functions: Cover most daily maintenance
✅ 2 Years Free Update: Low long‑term cost
✅ Global Version: Works on cars worldwide
✅ One‑Stop Solution: Passenger cars + optional heavy‑duty trucks
