| Mənşə | Shenzhen |
| İdxal edilib-edilməməsi | No |
| Sifariş nömrəsi | BD6 |
| Emal və fərdiləşdirmə | No |
| Məhsul nömrəsi | CDL0020 |
| Növ | Avtomobil nasazlıq detektoru |
| Aşkarlama sistemi | Bütün nəqliyyat vasitəsi sistemi |
| Enerji təchizatı gərginliyi | 12 |
| İşləmə temperaturu | -20~40 |
| Brend | Thinkcar |
| Model | BD6 |
| Əsas aşağı axın platformaları | Digər |
| Əsas satış sahəsi | Digər |
| Lisenziyalı özəl brendlər var | No |
| Sərhədlərarası ixrac üçün malların eksklüziv təchizatı olub-olmaması | Is |
| Spesifikasiya | Thinkcar bd6 (lifetime free upgrade) |
| Spesifikasiya | Thinkcar bd6 (lifetime free upgrade) + obd2 extension cable |
| Spesifikasiya | Starting from 20 sets thinkcar bd6 (lifetime free upgrade) |
海外版本，国内不能使用请谨慎购买

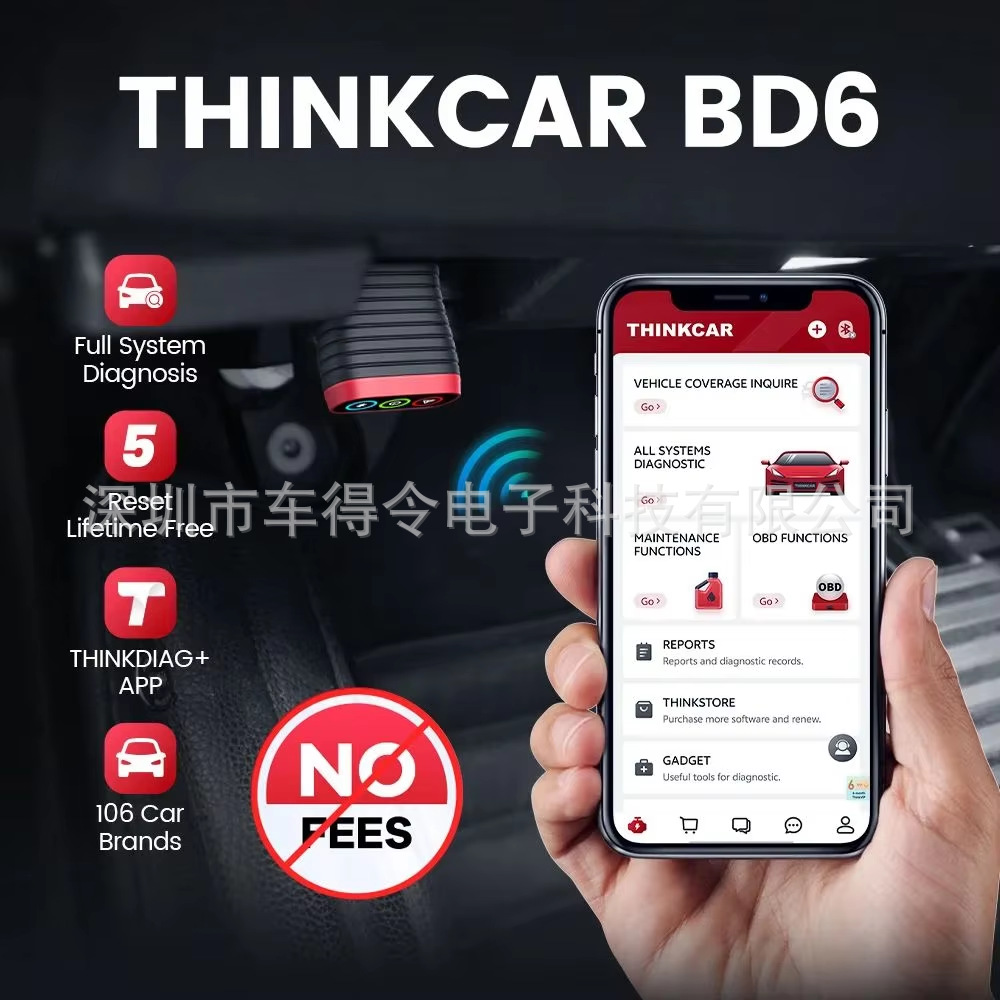

THINKCAR BD6 OBD2 Scanner Bluetooth, Wireless All System Diagnostic Tool for iOS & Android, 5 Hot Reset Free for Life Check Engine Car Code Reader
Lifetime Free All System Diagnosis for 106 Car Brands
Lifetime Free 5 Resets (Oil, Bleed, Brake, ETS, IMMO) for all cars (Need check compatibility)
No annual renewal cost, compeletely FREE!!!
Lifetime Free Full OBD2 Functions for all cars,
Auto VIN, 4 In 1 Live Data
Print Real-time Diagnostic Report
Read/Clear code Error
Support 12 Languages:
English,French,German,Spanish,Italian,Portuguese,Japanese, Russian,Polish,Traditional Chinese, Turkish,Greek
How to Use the THINKCAR BD6?
Step1: Download the "ThinkDiag+" in the APP store or in GooglePlay store.
Step2: Open the THINKDIAD+ APP, click on"Sign Up",verification code will be sent to the email you input, if you did not got, please check the spam.
Step3: Click on "Activate" to open the activation page, you need to input the serial number and an 8-diagit activation code is on the first page of the Quick Start Guide.
Step4: Plug THINKCAR BD6 into the vehicle's OBDII port, there will be a red light which indicates the device is powered on.
Step5: Open the THINKDIAG APP, it will automatically search for activated devices, select your device and connect to it via Bluetooth in the APP. The indicator will turn to flashing blue.
Step6: In the "Diagnostics" interface of the App, you will need to download the corresponding diagnostics software when first apply"All System Diagnostic""Maintenance function" and"OBD Functions".
Exclusive THINKDIAG+ APP, Lifetime Free Use and Upgrade
Bluetooth Connection
Compatible with ios 9.0 or Android 5.0 and above

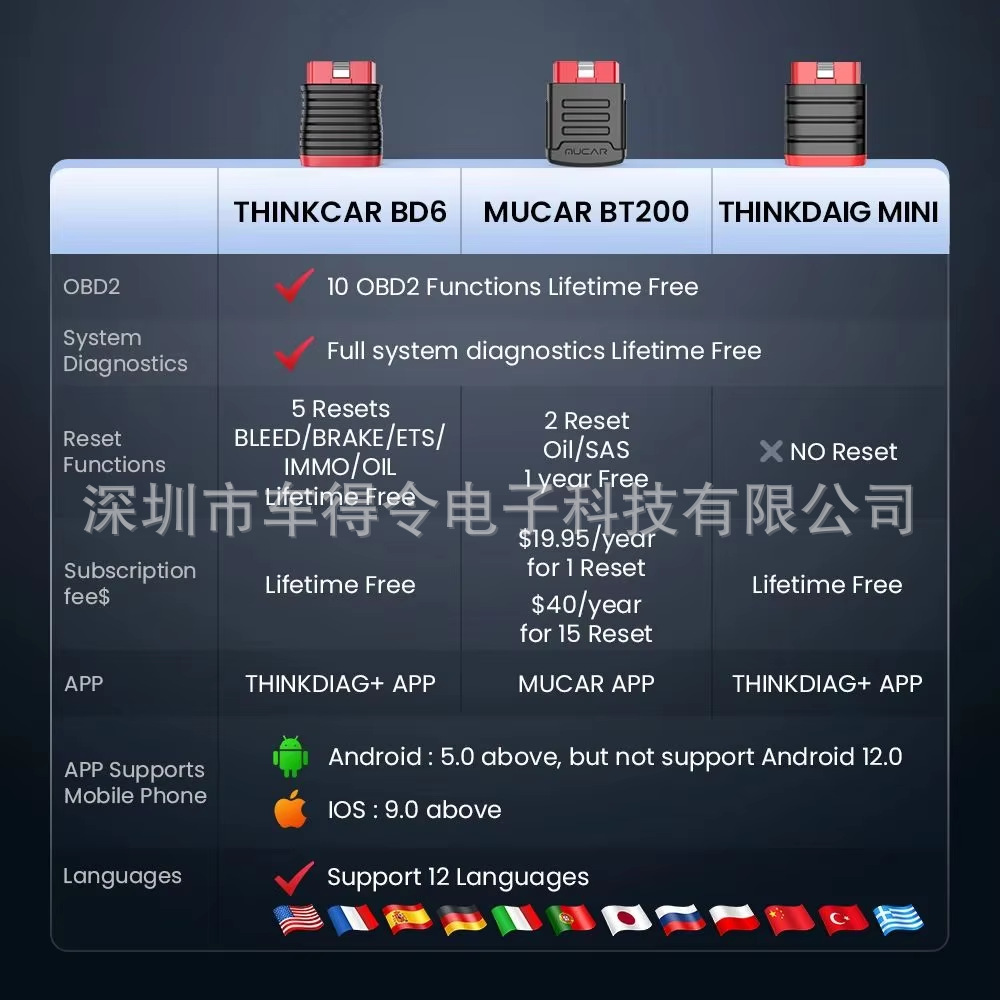

What are the Differences of THINKCAR BD6, MUCAR BT200 and THINKDIAG mini?
All cars Lifetime Free Full System Diagnosis
All cars Lifetime Free Full System Diagnosis. This BD6 OBD2 Bluetooth Scanner has full vehicle systems diagnoses functions:
The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.
Some commonly used systems as follows:
Check Engine System: THINKDIAG mini Bluetooth diagnostic tool will read the fault codes, find the cause of the check engine light and point out the problems. This car scanner can show you the live data stream in a graph.
Diagnose ABS System: THINKDIAG mini scanner checks all ABS to retrieve DTCs, views the live data, and offers you specific info of pending codes
Read SRS System: This code scanner reads the SRS information, detects existing problems to prompt a certain replacement or repair in time to ensure driving safety.
Transmission System: This car Bluetooth diagnostic tool reads diagnostic codes from the transmission system and detects whether the car’s speed and load match its transmission’s power output.
5 Reset Service Lifetime Free!!! No Annual Fee
Kindly send us VIN to check compatibility before purchase! not all reset compatible with all cars.
1. ABS Bleeding : ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
2.EPB Brake: it is important in the maintenance of electronic braking system's safety and efficiency.
3.ETS Throttle Adaptation: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow.
sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
4. IMMO Key Programming: the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
5. Oil Lamp Reset Service : allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

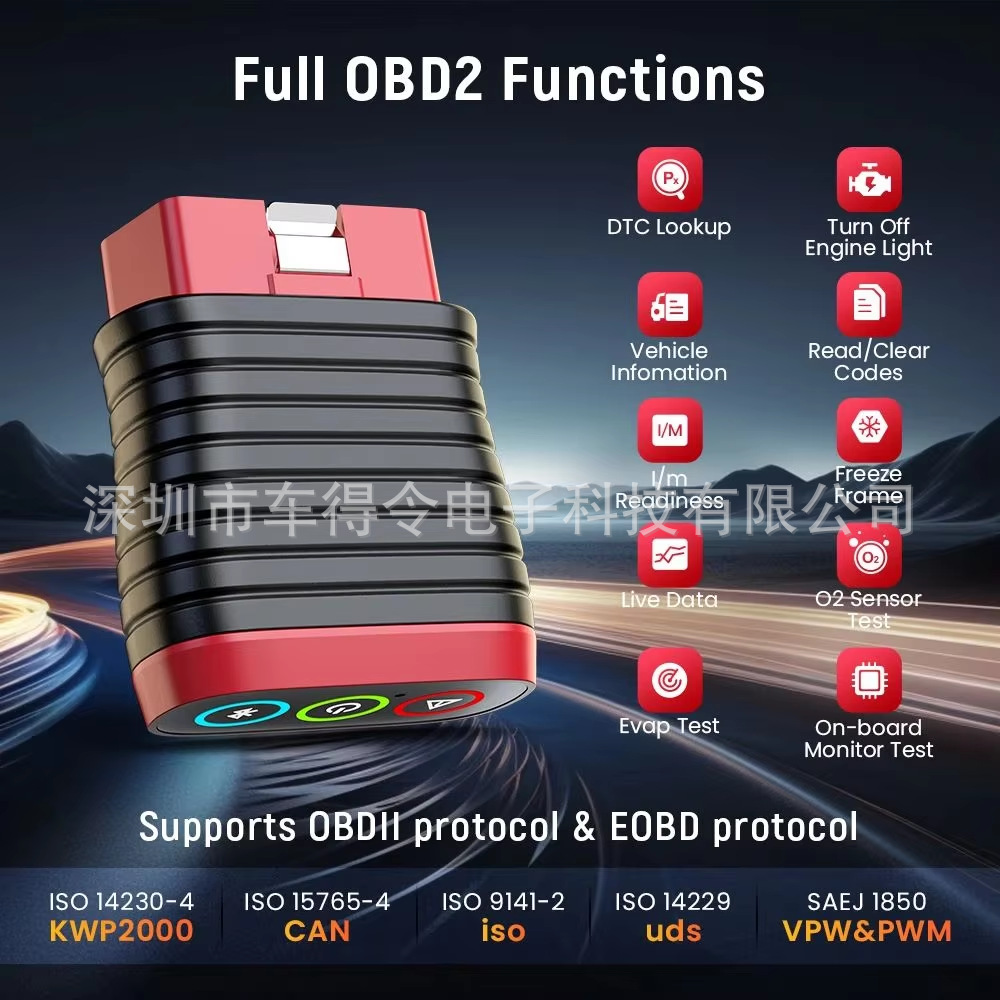

All Cars Full OBD2 Functions
*-Read extensive current, pending and permanent codes in OBD system quickly
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system
Support 98% Vehicle Compatibility, 12 languages
THINKCAR BD6 is compatible with most American, European, and Asian models manufactured as from 1996. It supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network). If you don't know your car OBD2 protocols that you could check your car OBD2 connector whether 16 Pin. If yes. This goods support to your car.
-America:Ford(Australia), LINCOLN, BUICK, Chrysler, GM, FORD, CHRYSTER, CADILLAC, CHEVROLET, DODGE, FIAT(BRAZIL), GM(BRAZIL), Jeep, SGM
- Europe: AstonMartin, Benz, Sprinter, BMW, Ferrari, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Jaguar, Lambor Ghini, ALFA ROMEO, BENTLEY, BUGATTI, DR, DACIA, EUROFORD, GAZ, IVECO, IZH, JAGUAR, MERCEDES, MAYBACH, OPEL, OPEL(SOUTH AFRICA), PAZ, RENAULT, ROVER, ROLLS-ROYCE, SPRITER, UAZ, VAZ, VAUXHALL, ZAZ
- Asia: Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion, IKCO, LUXGEN, MAHINDRA(INDIA), MARUTI(INDIA), MAHINDRA(INDIA), MARUTI, MVM, NISSANGTR, PERODUA(MALAYSIA), PROTON(MALAYSIA), PERODUA, PROTON(MALAYSIA), RENAULT SAMSUNG, SAIPA, TATA(INDIA), TATA, TLISUZU, UNITED PAKISTAN
Chinese car list:
Need standard obd2 , and release year from 2014 -now
Great Wall, Huachen, DF Honda ,Lifan

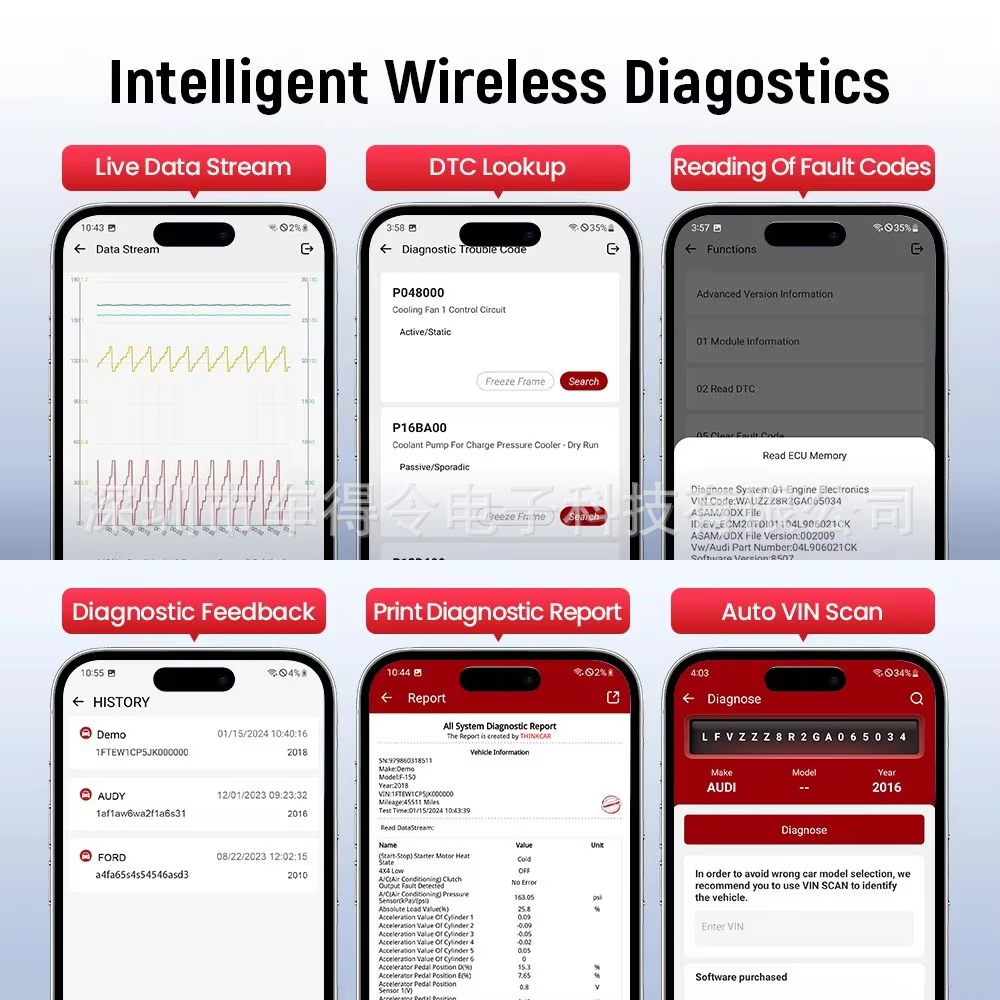

Other Functions
One-Click Auto VIN
DTC Lookup
4 In 1 Live Data Stream
Print Diagnostic Report
Online Feedback

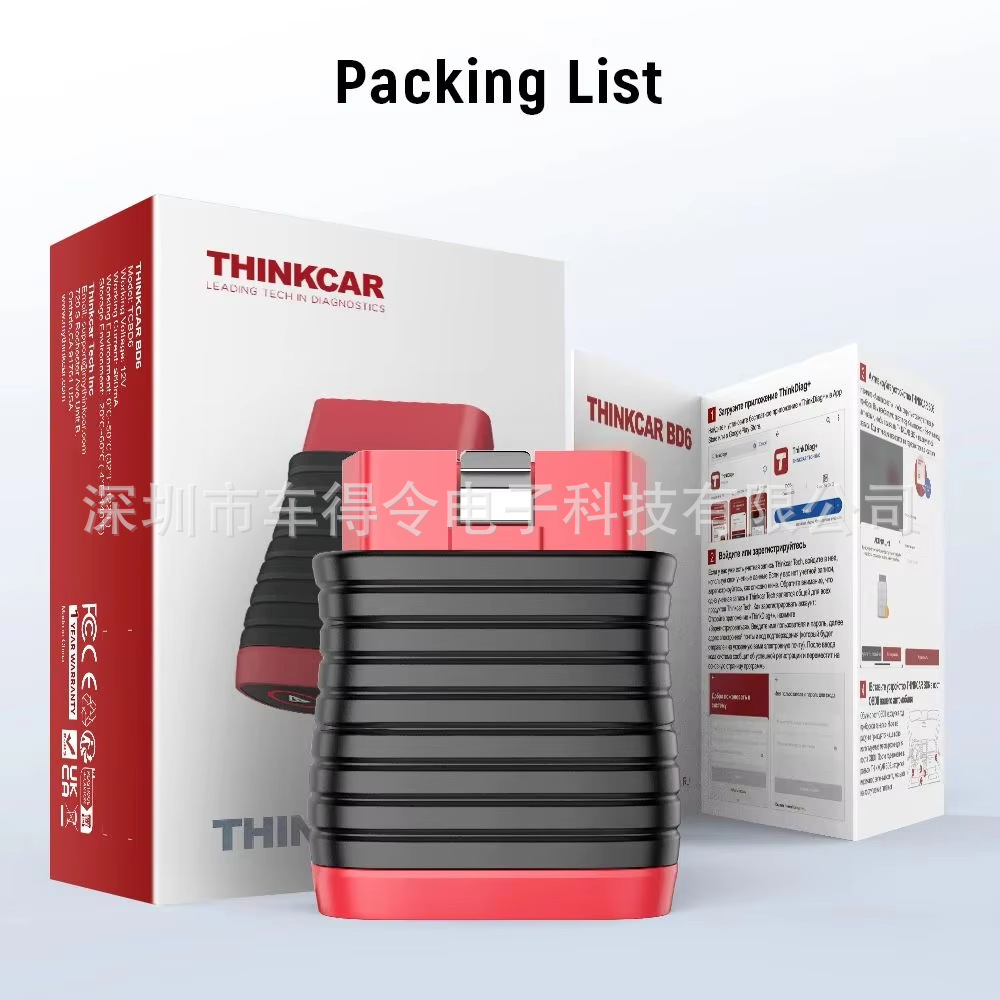

Packing lists
1 * THINKCAR BD6 Scanner
1 * Multilingual User Manual
