Daotong electroprobe Autel PowerScan PS100 electrical system diagnostic circuit tester

Autel PowerScan PS100电气系统诊断工具免费
编号：CTT088
产品描述
Autel PowerScan PS100 Tool是迄今为止最具革命性的电路测试仪。 PowerScan具有AVOmeter，测试灯，内置手电筒，短路指示器，继电器/组件测试仪，连续性测试仪和不良接地指示器，是真正的功率和承受能力极高的产品，使用户可以一步一步检查电路。对于寻求快速，准确的电气系统诊断解决方案的每个技术人员来说，这绝对是必须的。
Autel PowerScan PS100电气系统诊断
Autel PowerScan PS100 Generation说明：
Autel PowerScan PS100是缩短所有6至30伏车辆电气系统中诊断时间的最佳电气测试仪。将工具简单地连接到车辆电池后。
Autel PowerScan PS100功能：
1.一目了然地确定电路是正极，负极还是断路，而无需将线夹从一个电池极重新连接到另一极。
2.使用内置的辅助接地导线测试导通性。
3.按下电源开关，在不使用跳线的情况下，将正或负电池电流传导至探针尖端，以测试电气组件的功能。
4.立即测试接地不良，而无需执行电压降测试。该工具还具有短路保护；如果内部断路器过载，它将跳闸。
5.跟踪并找到短路，而不会浪费保险丝。该工具的长电缆可让您沿着车辆的整个长度进行测试，而无需不断寻找合适的车辆接地点。
Autel PowerScan PS100特点：
●执行各种服务，包括电源注入，测量，接地测试，极性检查，连续性测试和组件激活
●易于读取的AVOmeter使您可以在指尖读取电压，电流和电阻
●轻按电源开关，即可获得即时的热/接地引线，以为冷却风扇，继电器等电子组件供电。
●同时使用热线和地线激活您手中的组件
●立即识别正极，负极和断路
●立即测试不良的接地接触，使您能够快速跟踪并定位短路，而不会浪费保险丝
●立即检查开关，继电器和二极管的导通性
●断路器保护
●内置手电筒可让您在黑暗中工作
●一旦用户熟悉菜单音调分配，音频音调指示器就可以滚动菜单菜单
●20英尺（可延伸）电缆可在车辆上进行出色的测试
●极易使用且高度可靠

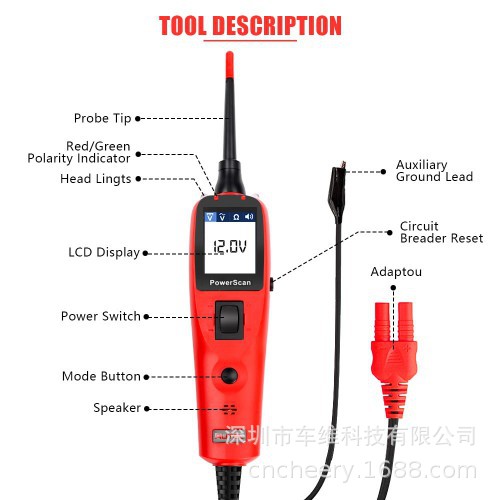

Autel PowerScan PS100说明：

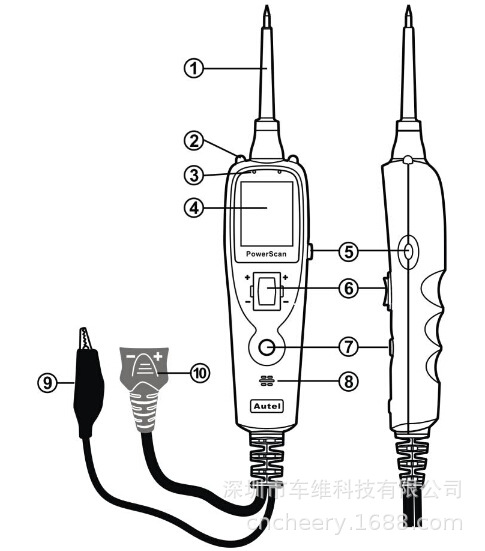

①探针提示–接触要测试的电路或组件。
②头灯–照亮黑暗的工作区域或夜间的工作区域。 。
③红色/绿色极性指示器–标识正，负或开路。
当探针尖接触正极时，红色指示灯点亮。当探针尖接触负极电路时，绿色指示灯点亮。
④LCD显示屏–指示测试结果。
⑤断路器复位–断路器跳闸时复位工具。
⑥电源开关–允许您将正或负电池电流传导至吸头，以激活和测试电气组件的功能。
⑦模式按钮-选择工作模式：交流电压，直流电压，电阻，音调。
peak扬声器–开启音频时，会听到哔声。
⑨辅助接地线-辅助测试作为接地线。
⑩适配器–连接电池

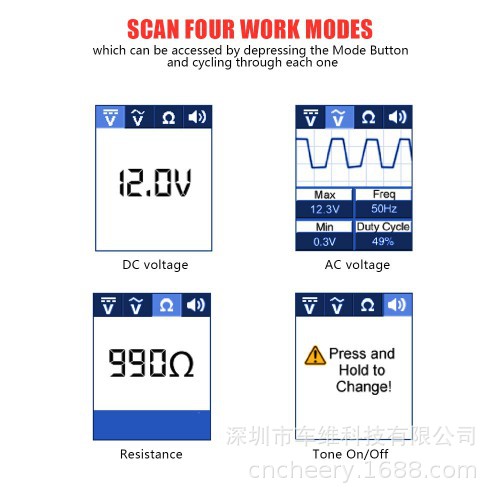

Autel PowerScan PS10工作模式：
有四种诊断电气系统的模式，可以通过按下模式按钮并循环浏览每个模式来访问。
直流电压
当工具处于此模式时，将探针尖端与电路接触，然后LCD显示屏将读取分辨率为0.1伏的直流电压。

交流电压
当工具处于此模式时，将探针尖端与电路接触，然后LCD显示屏将读取Max。电压，最小值电压，频率和占空比。

抵抗性
当工具处于此模式时，将探针的尖端与电路接触，然后LCD显示屏将读取尖端与辅助接地引线之间的电阻。

音调开/关
当工具处于此模式时，只需快速按下模式按钮即可打开或关闭音调。在快速按下（快速按下并释放）模式按钮的同时，如果听到一声短促的哔哔声，则表示音频已打开。如果听到一声短促的低哔声，则音频音会关闭。

在仅LED照明不足的明亮区域工作时，此功能非常有用。音频功能可能会在需要时断开，例如用于将工具长时间连接到电路且音频可能会令人讨厌的应用中。
Autel PowerScan PS100规格：

显示：TFT彩色显示器（160 x 128 dpi）
工作温度：0至60°C（32至140°F）
外部电源：通过车辆电池提供的12.0或24.0 V电源
长\宽\高：126mm（4.96“） 46.5mm（1.83”） 35mm（1.38“）
净重：0.105千克（0.23磅），毛重：0.726千克（1.6磅）
Autel PowerScan PS100常见问题解答：
1. PowerScan Probe Tester计算机和安全气囊是否安全？
工具LED和LCD吸取的电流不超过1毫安，因此将其用作测试灯或万用表时，对计算机和安全气囊都是安全的。但是，按下电源开关是另一回事。当您向前按下开关时，您正在将全部电池电流传导到探头的尖端。该工具内置了很好的安全功能。只需将多余的地线连接到工具上，然后向前按下电源开关，直到它跳到断路器为止，这可以防止电源流到尖端，但仍然允许您将工具用作万用表。当您远离计算机组件时，只需按一下“重置”按钮即可准备再次上电。
2.为什么当我向前按电源开关但红色LED点亮时，我的尖端无电？
电源开关经过很多。这是该工具出错的几件事情之一。开关是一种消耗品，有时需要更换。我们不仅简化了更改，而且还购买了新的交换机，这确实非常简单。可以将开关拨出并在几秒钟内更换。您可以从Autel授权的工具供应商处购买开关。带有翘板开关插槽的工具可轻松在现场更换磨损的开关，而无需将其送去维修。
Autel PowerScan PS100评论：
彼得于2018年6月3日发布
这个工具值得花钱一次哭一次。我发现车辆短缺，这使工作变得容易
由Teery.P在2017年5月13日
这种价格合理的工具从来没有给我如此深刻的印象。我的一个朋友买了一个类似的“动力探头”设备，这给我留下了深刻的印象。我买了这个，是因为点示波器功能似乎很有用。我打了正确的电话。
这个东西对于任何类型的汽车电子测试都非常有用。需要弄清楚为什么灯不亮？将12v放到灯泡座上并检查。需要查看开关是否正常工作？将其指向其背面，然后扳动开关。需要弄清楚为什么拖车灯不工作？这东西有一根很长的电缆延长线，可以伸回拖车。是否需要对汽车下方的配线架进行故障排除？这不仅可以完成这项工作，而且还具有不错的LED灯。
认真购买此PowerScan PS100工具。这是一个很好的案例，其中包含您需要的部件。它在技师甚至诊断出问题之前就已经收回了成本，并且可以在您将所有内容重新组合在一起之前，帮助您确定您的奇怪的陪审团解决方案是否可以工作。我觉得我应该给工程师写一张支票，因为我已经用了很多。
由Kawayi于2017年1月11日
我是从事汽车行业的技术人员，因此购买了该技术可用于对汽车中的电气短路进行故障排除。我过去曾经使用过功率探头，但是Autel具有我感兴趣的一个特殊功能。它具有一定的范围功能，在对飞行中的传感器进行故障排除以及非常明亮且易于阅读的屏幕时，这真的很有用。作为欧姆表，我对它的性能感到好奇。到目前为止，它非常有用并且运行良好，我不需要单独的仪表进行某些测试，并且它在测试中非常准确。我确实找到了一个奇怪的操作。当探查一个说有接地的电路，然后在激活时变热，PS100会显示电路变热（12伏），但也会显示接地。挺奇怪的，但是如果这样做的话，它就是idk。该工具本身看起来构造良好，但对我而言，电缆似乎有点细，而与功率探头相比，其厚度却不那么粗。总而言之，我认为它是功能和价格点的绝佳工具，我只希望它能持续到我期望的时间，否则它会过早失效。我将在未来对其耐用性和操作进行更新。
Autel PowerScan PS100软件包包括：
1×PowerScan PS100
1×坚固的吹塑外壳
1×20英尺延长线1×探头尖端
1×电池连接夹
1个点烟器适配器
1×用户手册

Autel PowerScan PS100 Electrical System Diagnosis Tool Free

ID NO.: CTT088

Product Description

Autel PowerScan PS100 Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Autel PowerScan PS100 Electrical System Diagnostics

Autel PowerScan PS100 Generation Description:

Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery.
Autel PowerScan PS100 Functions:
1. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its built-in auxiliary ground lead.
3. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
5. Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
Autel PowerScan PS100 Features:

● Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
● Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
● With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
● Simultaneously uses the hot lead and the ground lead to activate components right in your hand
● Instantly identifies positive, negative and open circuits
● Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
● Instantly checks continuity of switches, relays and diodes
● Circuit breaker protected
● Built-in Flashlight enables you to work in the dark
● Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
● 20ft (extendable) cable provides excellent accessibility to test along the vehicle
● Extremely easy to use and highly reliable

Autel PowerScan PS100 Description:

①Probe Tip–Contacts the circuit or component to be tested.
②Head  Lights –Illuminates  dark  work  areas  or  work  areas  at night. .
③Red/Green Polarity Indicator–Identifies positive, negative or open  circuits.
The  RED  Indicator  lights  when the  Probe  Tip  is contacting a positive circuit. The GREEN Indicator lights when the Probe Tip is contacting a negative circuit.
④LCD Display–Indicates test results.
⑤Circuit  Breaker  Reset –Resets  the  tool  when  the  Circuit Breaker is tripped。
⑥Power  Switch–Allows  you  to  conduct  a  positive  or  negative battery  current  to  the  tip  for  activating  and  testing  the  function of electrical components.
⑦Mode  Button–Selects the  work  mode:AC  voltage,DC voltage, resistance, tone.
⑧Speaker–When  the  audio  tone  is  turned  on,  a  beep  will  be heard.
⑨Auxiliary Ground Lead–Assists test as a ground lead.
⑩Adaptor –Connects to the battery

Autel PowerScan PS10 Work Mode:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

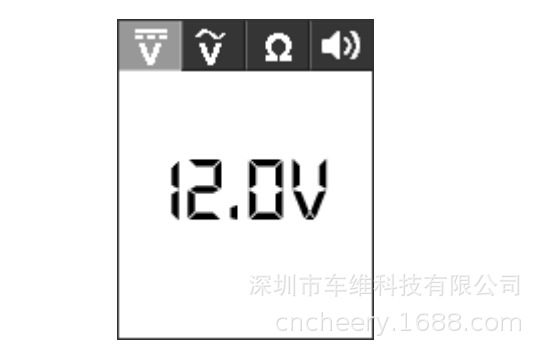

DC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

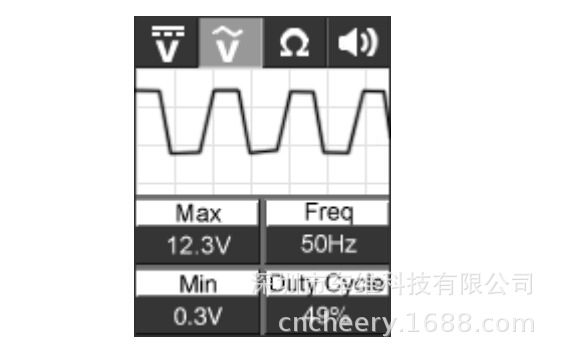

AC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.

Resistance
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

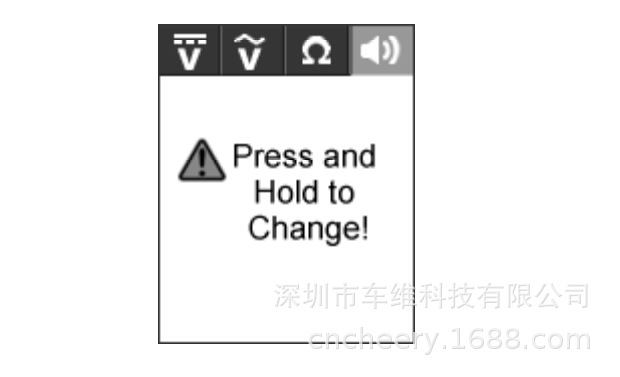

Tone On/Off
While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.

This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.

Autel PowerScan PS100 Specifications:

Autel PowerScan PS100 FAQ:

1. Is the PowerScan Probe Tester computer and air bag safe?
The tool LED and LCD pull no more than 1 milliamp of current,therefore when using it as a test light or multimeter it is computer and airbag safe. However, pressing the power switch is a different story. When you press the switch forward, you are conducting full battery current to the tip of the probe. There is a nice safety feature built into the tool. Simply connect the extra ground lead to the tool and press the power switch forward until it trips the circuit breaker.This will prevent power from going to the tip but still allow you to use the tool as a multimeter. When you are away from computer components, simple press the reset button and you are ready to power up again.
2. Why do I have no power at the tip when I am pressing the power switch forward but the red LED is on?
The power switch goes through a lot. It is one of the few things that go wrong with the tool. The switch is a consumable that needs to be replaced on occasion. We have made it real simple to not only change it but also buy a new switch. The switch can be snapped out and replaced in seconds. You can buy switches from your Autel authorized tool supplier. The tool with the Rocker Switch slots makes it easy to replace a worn switch in the field without having to send it in for repair.

Autel PowerScan PS100 Reviews:

By Peter on 3 June,2018
This tool is worth it spend the money and cry once . i found a short in a vehicle and it makes the job easy

By Teery.P on 13 May,2017
I have never been so impressed by such a reasonably priced tool. A friend of mine bought a similar "powered probe" device, and I was impressed. I bought this one because the point oscilloscope feature seemed useful. I made the right call.
This thing is unbelievably helpful for any sort of automotive electronic testing. Need to figure out why a light isn't on? Put 12v to the bulb holder and check it. Need to see if a switch is working? Point this at the back of it, and flip the switch. Need to figure out why a trailer light isn't working? This thing has a wicked long cable extension to reach way back to the trailer. Need to troubleshoot a wiring loom under the car? Not only will this do the job, but it has a decent LED light.
Seriously, buy this PowerScan PS100 tool. It comes in a nice case, with the pieces you need. It pays for itself before the mechanic has even diagnosed the problem, and will help you figure out if your weird jury-rigged solution will work before you put everything back together. I feel like I should write the engineers a check because I've gotten so much use out of it.
By Kawayi on 11 Jan,2017
I am an automotive tech by trade and bought this to use in troubleshooting electrical shorts in automobiles. I have used the power probe in the past but the Autel has one particular feature I was interested in. This has a kinda scope feature that can really be useful when troubleshooting sensors on the fly along with a very bright and easy to read screen as well as a ohm meter it had me curious as to how good it is. So far it has been very useful and works well, I don't need a separate meter for certain testing and it has been accurate in testing. I did find a strange operation about it though. When probing a circuit that lets say has ground to it then when activated goes hot , the PS100 shows the circuit go to hot (12volt) but also shows ground as well. Pretty strange but idk if it made to do so. The tool itself seems well built but the cable to me seems a little thin and not as thick if a gauge as the power probe. All in all I think it's a great tool for the features and price point, I only hope it lasts just as long as I expect or will it fail too soon. I will update in the future as to its durability and operation.

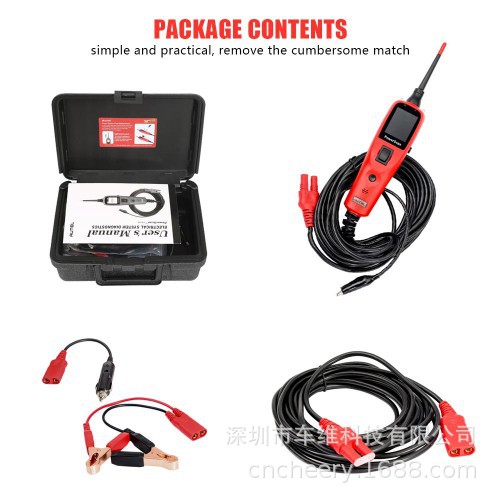

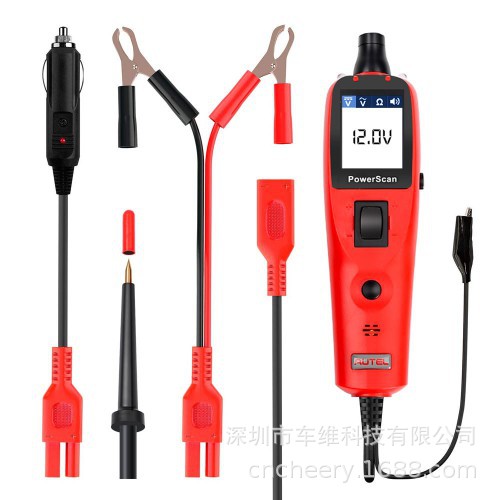

Autel PowerScan PS100 Package including:

1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
