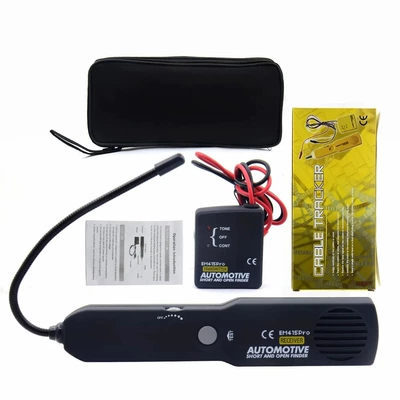

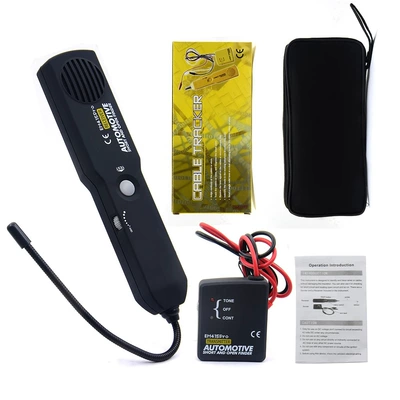

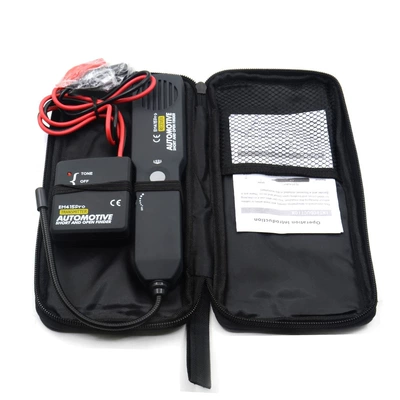

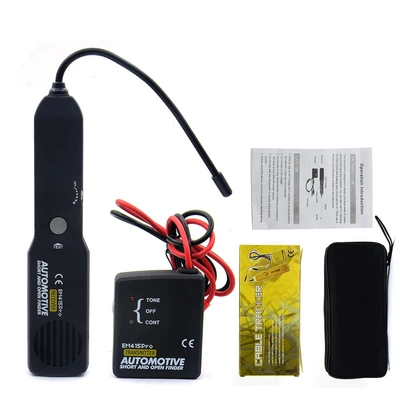

Car Circuit Breaker Short-Circuit Finder EM415PRO EM415 Circuit Breaker Electronic Detection Tool Line Detection

包装尺寸：25.5*12.5*3.5

FUNCTION:

* Tracing of wires is made possible even inside bundles, co-

nduits, behind  panels, under carpets, upholstery, etc

* Easy to use: simply connect the transmitter in series with

the circuit or wire  under test, (i.e.: in place of a blown fuse,

across a connector, in series with  an open wire, a light bulb

socket, etc.), and scanning the circuit/wire with the  tracers

flexible probe to find the trouble spot

* 42 V Ready: for use in the new generation of vehicles with

mixed or single 42  Volt systems

* Operates on DC voltages from 6 to 42 volts

* Internally protected against power surges and overloads

* 7" flexible probe allows reaching wires in congested places

* Transmitter and Receiver LEDs show open or short circuit

conditions

* Adjustable sensitivity for all tracing situations

* No wire piercing required, non-contact technology!

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach

wires in ongested or difficult areas. Depending on the  circuit  characteristic and sensitivity settings,

the probe will pick up the signal from  the wire in a range of positions. However, for the best

possible  range the  Receiver's probe tip (black cap) should be positioned perpendicular  (at 90o)

to  the wire being traced and either above or below it.
