| Mənşə | Çin |
| İdxal olunubmu | No |
| Sifariş nömrəsi | CTP245 |
| Fərdi emal | No |
| Məhsul № | CTP245 |
| Növ | Avtomobil Kompüter Detektoru |
| Diaqnostika Sistemi | Automobile computer diagnosis ECU code and tire pressure monitoring |
| Enerji təchizatı gərginliyi | 5 |
| İşləmə temperaturu | 0 to 50°C |
| Brend | Autel |
| Model | DS808S-TS |
| Əsas aşağı axın platformaları | Digər |
| Əsas satış sahələri | Digər |
| Səlahiyyətli özəl brendlər var | No |
| Sərhədlərarası ixrac yalnız mövcuddurmu | Bəli |
| Çəki | 3kg |
| Sales area | Xarici versiya |
产品图片展示
产品英文介绍（Product introduction in English）
2023 Autel MaxiDAS DS808S-TS Diagnostic Tool with Advanced ECU Coding & TPMS Services Upgraded of MP808S/ DS808TS
ID NO.: CTP245
Product Description
Autel MaxiDAS DS808S-TS, equipped with Full TPMS and Diagnostics, performs well both in your vehicle diagnosis and in Full TPMS. Autel DS808S-TS Scanner is upgraded from MP808S / MP808BT PRO which do not support TPMS functions, thus this scanner has complete TPMS services which same as MS906TS / MS906Pro-TS / MK906Pro-TS to solve the TPMS issues. If you want a scan tool to meet your diagnostic and TPMS need, then Autel DS808S-TS will be your best choice.
AUTEL MaxiDAS DS808S-TS Diagnostic Tool with Advanced ECU Coding & TPMS Service
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiDAS DS808S-TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System). In addition to OBDII diagnostics and special functions, DS808S-TS can perform comprehensive TPMS services with ease.
Autel MaxiDas DS808S-TS Highlights:
1. 99% of vehicles covered - Autel Scanner DS808S-TS is capable to diagnose almost all vehicles in the market, making it an one-for-all diagnostic scanner.
2. 1-Year Free Software Update -After 1 year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
3. A Key to Access On-board Systems - ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System.. Autel Newest Diagnostic tool MaxiPro MP808TS can solve the vast majority of problems with your vehicle.
4. Wireless Diagnosis - Conducting wireless diagnostics through VCI module, Newest diagnostic tool MP808TS will set you free from entangled wires.
5. Compelete TPMS Services - Same as MS906TS/ MS906 PRO-TS/ MK906 PRO-TS. Combination of MS906 and hand held TS601 which is a solid and well respected TPMS tool. As Advanced TPMS diagnostics for complete TPMS health check. Autel DS808S-TS can activate sensors, retrieve data, clone and program Autel MX-Sensors and pinpoint faults on exclusive TPMS Status Screen.
6. Bi-Directional Control - DS808S-TS builds a mutual communication with onboard ECUs and execute every single one of your commands
7. 30+ Special Functions - Autel DS808S-TS Supports 30+ commonly used hot functions to meet the needs of daily maintenance diagnostic and reset.
8. Multi-Languages support
9. Same ECU Coding Functions as Autel MaxiSys MS906BT/ MS906 PRO/ MS906 PRO-TS/ MaxiCOM MK906 PRO/ MK906 PRO-TS/ MK908/ MK908 II
Product Features:
• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes and models
• Exceptional OE-level system coverage for all electronic systems
• Read and erase codes, View and Graph Live data, Perform bi-directional Active Tests, Perform Adaptations
• AutoVIN technology automatically identifies vehicle make, model, and year

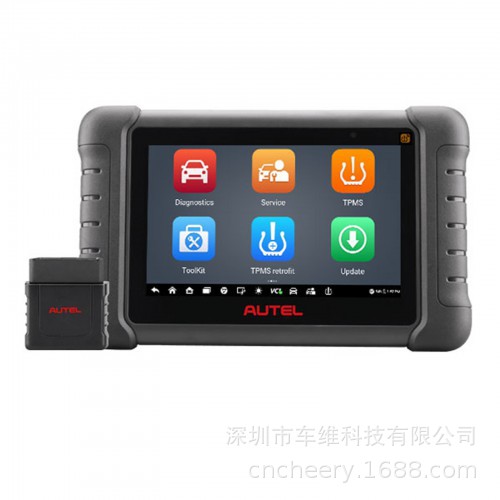

• 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
• Powerful Cortex-A55 processor (1.8 GHz) processor
• 64GB on-board memory for better performance
• Android 11 operating system for fast boot-up and multitasking
• Wi-Fi-enabled automatic software and system updates
• Instant remote control tech support anytime, anywhere
• Advanced TPMS diagnostics with DTC description
• At-a-glance TPMS status screen
• Activate all known TPMS sensors
• Program AUTEL MX-Sensor to replace TPMS 99% of sensors on vehicles today
• Comprehensive OBDII Relearn coverage
• Displays vehicle-specific Relearn instructions
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers
• Compatible with Videoscope and MaxiBAS BT506 to perform Battery Tests and Analysis
Autel DS808S-TS: All Enhanced Hardware, 5X Faster than MS906TS/ MS906BT/ MP808TS
Autel MaxiDAS DS808S-TS: Comprehensive TPMS Solution Provider, Works Effectively Same as MS906TS/ MS906 PRO-TS/ MK906 PRO-TS
Autel DS808S-TS OE-Level Full Systems Diagnosis
The full system diagnostics give you a key to access every on-board system to root out those invisible problems such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The Autel DS808S-TS can read and clear codes on all systems and subsystems so as to present you a clear picture of multiple sensors in different formats. And also it empowers you to read ECU information, live data and conduct active test.
Read DTCs – It can access to the depth of every onboard systems to read and analysis the DTCs
Clear DTCs – After tune-up or changing certain components, it can clear the DTCs hidden in the ECU and kill the lights on the dashboard.
ECU Information – get the retrieved ECU information in detail.
Live Data Stream – a valuable reference to determine the specific problems accurately.
Same ECU Coding Functions as Autel MaxiSys MS906BT/ MS906 PRO/ MS906 PRO-TS/ MaxiCOM MK906 PRO/ MK906 PRO-TS/ MK908/ MK908 II
Autel DS808S-TS with 30+ Maintenance Service
A well-bred horse deserves a good saddle. A real comprehensive OBD diagnostic scanner requires all-in-one functions.DS808S-TS diagnostic tool has been upgraded with over 31 service functions, such as Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS Calibration, DPF Generation, Injector Coding, Throttle Matching, Suspension Matching, TPMS, etc. Moreover, DS808S-TS can be constantly upgraded with more functions to meet your various maintenance needs.
Oil Reset - Reset the oil life system and turn off the oil light after oil or oil filter replacements.
EPB - Reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
BMS - Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.、Brake/ABS Bleed: bleed the brake system when the ABS system contains air to restore its braking sensitivity.
DPF - Regeneration: clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
Injector Coding - Write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.
SAS Calibration - Calibrate the steering angle after replacing steering related parts.
Suspension Level Calibration - Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
Throttle Adaption - Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
Sunroof Initialization - Initialize the sunroof data to set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
Seats Calibration - Specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.
And more...
Note: The reset service feature is not available on all models.
Autel DS808S-TS: More Extended Functions for Better Performance
Provide access to FCA cars with Autoauth, including Chrysler, Dodge, Jeep, Fiat etc made in and after 2018.
Compatible with Autel BT506 for battery & cranking test and MV108 for visual inspection.
Added with HDMI interface for easy demonstration on a larger screen.
Product Comparison:
|
|
MaxiDAS DS808S |
MaxiDAS DS808S-BT |
MaxiDAS DS808S-TS |
|
Read Codes |
√ |
√ |
√ |
|
Erase Codes |
√ |
√ |
√ |
|
Live Data |
√ |
√ |
√ |
|
ECU Information |
√ |
√ |
√ |
|
Active Test |
√ |
√ |
√ |
|
Service Functions |
√ |
√ |
√ |
|
Complete OBD Diagnositcs |
√ |
√ |
√ |
|
Oil Serive Reset |
√ |
√ |
√ |
|
Parking Brake Pad Relearn After Replacement |
√ |
√ |
√ |
|
Steering Angle Sensor Relearn |
√ |
√ |
√ |
|
Battery Registration and Reset |
√ |
√ |
√ |
|
Diesel Particulate Filter Regeneration |
√ |
√ |
√ |
|
Tire Pressure Monitoring System |
Basic |
Basic |
Complete |
|
Immobilizer Function |
Basic |
Basic |
Basic |
|
Advanced TPMS Diagnostics for Complete TPMS Health Check |
-- |
-- |
√ |
|
Activate 98% of All Known TPMS Sensors |
-- |
-- |
√ |
|
Program AUTEL MX-Sensors |
-- |
-- |
√ |
|
Comprehensive OBD relearn coverage |
-- |
-- |
√ |
|
On-screen Relearn Procedure |
-- |
-- |
√ |
|
Battery Analysis |
-- |
√ |
√ |
|
Videoscope |
√ |
√ |
√ |
|
Processor |
Quad-core 1.8GHz |
Quad-core 1.8GHz |
Quad-core 1.8GHz |
|
Operating System |
Android 11 |
Android 11 |
Android 11 |
|
Memory |
4G + 64G |
4G + 64G |
4G + 64G |
|
Display |
7" LCD |
7" LCD |
7" LCD |
|
Battery |
5000 mAh |
5000 mAh |
5000 mAh |
|
Internet Updatable |
WiFi |
WiFi |
WiFi |
|
Multilingual Support |
√ |
√ |
√ |
|
Historical Test Records |
√ |
√ |
√ |
|
Save and Playback Data |
√ |
√ |
√ |
|
Print Data via Windows PC |
√ |
√ |
√ |
|
Vehicle communication method |
Wired |
Wireless (bluetooth) |
Wireless (bluetooth) |
Product Specifications:
|
Operating System |
Android 11 |
|
Processor |
Cortex-A55 quad-core processor (1.8GHz) |
|
Memory |
4GB RAM & 64GB On-board Memory |
|
Display |
7-inch LCD capacitive touchscreen with 1024x600 resolution |
|
Connectivity |
Wi-Fi（802.11a/b/g/n/ac） |
|
USB 2.0，Mini USB 2.0 |
|
|
Wireless BT V2.1+EDR |
|
|
HDMI Type A |
|
|
SD Card (Support up to 64GB) |
|
|
Sensors |
Light sensor for brightness auto adjust |
|
Audio Input/Output |
Input: N/A |
|
Output: Beep |
|
|
Power and Battery |
3.7 V/5000mAh lithium-polymer battery |
|
Charges via 5 VDC power supply |
|
|
Input Voltage |
5 V/1.5 A |
|
Operating Temp |
0 to 50°C (32 to 122°F) |
|
Storage Temp |
-20 to 60°C (-4 to 140°F) |
|
Dimensions(WXHX D) |
270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”) |
|
Weight |
885g (2.31 lb.) |
|
Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6 |
Package Includes:

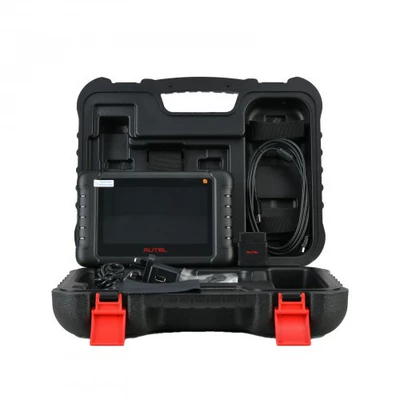

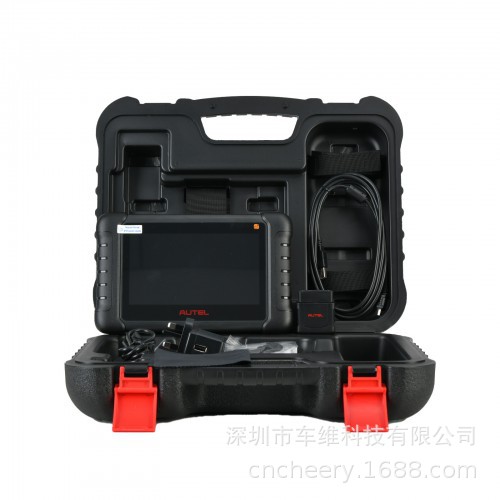

1pc x main unit
1pc x power adapter
1pc x VCI mini
1pc x quick reference guide
1pc x packing list
2pcs x mini USB cable
1pc x soft cloth
1pc x strap
1pc x carrying case
产品中文介绍（英译中-谷歌翻译）
2023 AUTEL MaxiDAS DS808S-TS 诊断工具，具有高级 ECU 编码和 TPMS 服务，MP808S/ DS808TS 升级
ID NO.: CTP245
产品描述
Autel MaxiDAS DS808S-TS 配备完整 TPMS 和诊断功能，在车辆诊断和完整 TPMS 方面均表现良好。Autel DS808S-TS 扫描仪是由不支持 TPMS 功能的 MP808S / MP808BT PRO 升级而来，因此该扫描仪具有与 MS906TS / MS906Pro-TS / MK906Pro-TS 相同的完整 TPMS 服务，解决 TPMS 问题。如果您想要一款扫描工具来满足您的诊断和TPMS需求，那么Autel DS808S-TS将是您的最佳选择。
AUTEL MaxiDAS DS808S-TS 诊断工具具有高级 ECU 编码和 TPMS 服务
能够快速读取和清除市场上大多数品牌和型号的所有可用模块的 DTC，MaxiDAS DS808S-TS 提供卓越的特殊功能，包括油重置、EPB（电子驻车制动）、SAS（转向角传感器）和 BMS（电池管理系统）。除了OBDII诊断和特殊功能外，DS808S-TS还可以轻松执行全面的TPMS服务。
Autel MaxiDas DS808S-TS 亮点：
1. 覆盖 99% 的车辆 - Autel 扫描仪 DS808S-TS 能够诊断市场上几乎所有车辆，使其成为一款一应俱全的诊断扫描仪。
2. 1年免费软件更新 - 1年后，如果您不选择继续购买升级服务，不会影响设备的正常使用 3.
访问车载系统的一键 - ABS、SRS ，发动机，变速箱，制动系统，排放系统，燃油系统，灯光系统，雨刮系统......Autel最新的诊断工具MaxiPro MP808TS可以解决您车辆的绝大多数问题。
4. 无线诊断 - 最新诊断工具MP808TS通过VCI模块进行无线诊断，让您摆脱缠结的电线。
5. 完整的TPMS服务-与MS906TS/ MS906 PRO-TS/ MK906 PRO-TS相同。MS906 和手持式 TS601 的组合是一款坚固且备受推崇的 TPMS 工具。作为用于完整 TPMS 健康检查的高级 TPMS 诊断。Autel DS808S-TS 可以激活传感器、检索数据、克隆和编程 Autel MX 传感器，并在独有的 TPMS 状态屏幕上查明故障。
6. 双向控制 - DS808S-TS 与板载 ECU 建立相互通信并执行您的每一个命令
7. 30+ 特殊功能 - Autel DS808S-TS 支持 30+ 常用热门功能，满足日常维护需求诊断和重置。
8. 多语言支持
9. 与 Autel MaxiSys MS906BT/ MS906 PRO/ MS906 PRO-TS/ MaxiCOM MK906 PRO/ MK906 PRO-TS/ MK908/ MK908 II 相同的 ECU 编码功能产品特点：
• 广泛的车辆覆盖范围，涵盖 80 多种美国、亚洲和欧洲的汽车品牌和型号
• 卓越的原厂级系统覆盖范围，适用于所有电子系统
• 读取和擦除代码、查看和绘制实时数据、执行双向主动测试、执行调整
• AutoVIN 技术自动识别车辆品牌、型号和年份
• 7 英寸 LCD 电容式触摸屏，分辨率为 1024 x 600
• 强大的 Cortex-A55 处理器 (1.8 GHz) 处理器
• 64GB 板载内存可提供更好的性能
• Android 11 操作系统可实现快速启动和多任务处理
• 支持 Wi-Fi 的自动软件和系统更新
• 随时随地即时远程控制技术支持
• 带有 DTC 描述的高级 TPMS 诊断
• TPMS 状态屏幕一目了然
• 激活所有已知的 TPMS 传感器
• 对 AUTEL MX-Sensor 进行编程，以取代当今车辆上 99% 的 TPMS 传感器
• 全面的 OBDII Relear 覆盖范围
• 显示特定于车辆的重新学习说明
• 一站式多任务处理，专为车间运营的理想管理而设计，使所有数据文件、客户信息和车辆记录井井有条
• 基于云的报告管理允许您在手机、平板电脑和计算机浏览器上查看、保存、打印和共享报告
• 兼容视频内窥镜和 MaxiBAS BT506，执行电池测试和分析
Autel DS808S-TS：全增强型硬件，比 MS906TS/ MS906BT/ MP808TS 快 5 倍
Autel MaxiDAS DS808S-TS：全面的 TPMS 解决方案提供商，工作效率与 MS906TS/ MS906 PRO 相同 - TS/ MK906 PRO-TS
Autel DS808S-TS OE级全系统诊断
全系统诊断为您提供访问每个车载系统的钥匙，以根除那些看不见的问题，例如PCM、ECM、EPS、PDM、BCM、TPM、SCCM、RADIO等Autel DS808S-TS可以读取和清除所有系统和子系统上的代码，以便为您呈现不同格式的多个传感器的清晰图像。它还使您能够读取 ECU 信息、实时数据并进行主动测试。
读取故障码——可以深入各车载系统读取并分析故障码。
清除故障码——在调试或更换某些部件后，可以清除隐藏在ECU中的故障码，并关闭仪表盘上的灯。
ECU 信息 – 获取检索到的 ECU 详细信息。
实时数据流——为准确判断具体问题提供有价值的参考。
与 Autel MaxiSys MS906BT/ MS906 PRO/ MS906 PRO-TS/ MaxiCOM MK906 PRO/ MK906 PRO-TS/ MK908/ MK908 II 相同的 ECU 编码功能 Autel DS808S-TS 提供 30 多次
维护服务
良马值得拥有好马鞍。真正全面的 OBD 诊断扫描仪需要一体化的功能。DS808S-TS 诊断工具已升级，具有超过 31 种服务功能，例如机油复位、EPB、BMS、SRS、ABS 放气、SAS 校准、DPF 生成、喷油器编码、油门匹配、悬架匹配、TPMS等。此外，DS808S-TS还可以不断升级更多功能，满足您的各种维护需求。
机油重置 - 更换机油或机油滤清器后，重置机油寿命系统并关闭机油灯。
EPB - 更换刹车片、伺服电机等后重置刹车片，停用/激活制动控制系统，辅助制动液控制，打开和关闭刹车片等。 BMS - 重置汽车的监控
单元更换电池或电池监控传感器后对电池进行排气。、制动/ABS 排气：当 ABS 系统含有空气时对制动系统进行排气，以恢复其制动灵敏度。
DPF-再生：通过连续燃烧氧化方式清除DPF过滤器中的颗粒物，稳定过滤器性能。
喷油器编码——写入喷油嘴的实际代码或更换ECU和喷油器后将ECU中的代码重写为各缸喷油嘴对应的代码，以准确控制或修正各缸喷油量圆柱。
SAS 校准 - 更换转向相关部件后校准转向角度。
悬架水平校准 - 更换空气悬架系统中的车辆高度传感器或控制模块时，调整车辆高度传感器进行水平校准。
油门自适应 - 初始化油门执行器，以便将存储在 ECU 上的“学习”值返回到默认状态。
天窗初始化 - 初始化天窗数据，设置天窗锁关闭、雨天关闭、滑动/倾斜天窗记忆功能、车外温度阈值等。座椅校准 - 专为具有记忆功能的座椅设计
。修理或更换座椅后进行座椅匹配。
还有更多...
注意：重置服务功能并非在所有型号上都可用。
Autel DS808S-TS：更多扩展功能，性能更佳
提供对 Autoauth 的 FCA 车辆的访问，包括 2018 年及之后生产的克莱斯勒、道奇、吉普、菲亚特等。
兼容 Autel BT506 用于电池和启动测试，兼容 MV108 用于目视检查。
新增HDMI接口，方便在更大屏幕上演示。
产品对比：
|
|
马克西达斯 DS808S |
MaxiDAS DS808S-BT |
MaxiDAS DS808S-TS |
|
读取代码 |
√ |
√ |
√ |
|
擦除代码 |
√ |
√ |
√ |
|
实时数据 |
√ |
√ |
√ |
|
ECU信息 |
√ |
√ |
√ |
|
主动测试 |
√ |
√ |
√ |
|
服务功能 |
√ |
√ |
√ |
|
完整的 OBD 诊断 |
√ |
√ |
√ |
|
油服务重置 |
√ |
√ |
√ |
|
更换后驻车制动片重新学习 |
√ |
√ |
√ |
|
转向角传感器重新学习 |
√ |
√ |
√ |
|
电池注册和重置 |
√ |
√ |
√ |
|
柴油颗粒过滤器再生 |
√ |
√ |
√ |
|
胎压监测系统 |
基本的 |
基本的 |
完全的 |
|
防盗器功能 |
基本的 |
基本的 |
基本的 |
|
用于完整 TPMS 健康检查的高级 TPMS 诊断 |
-- |
-- |
√ |
|
激活 98% 的已知 TPMS 传感器 |
-- |
-- |
√ |
|
AUTEL MX-传感器计划 |
-- |
-- |
√ |
|
全面的 OBD 重新学习覆盖范围 |
-- |
-- |
√ |
|
屏幕上的重新学习过程 |
-- |
-- |
√ |
|
电池分析 |
-- |
√ |
√ |
|
视频内窥镜 |
√ |
√ |
√ |
|
处理器 |
四核1.8GHz |
四核1.8GHz |
四核1.8GHz |
|
操作系统 |
安卓11 |
安卓11 |
安卓11 |
|
记忆 |
4G+64G |
4G+64G |
4G+64G |
|
展示 |
7寸液晶屏 |
7寸液晶屏 |
7寸液晶屏 |
|
电池 |
5000毫安时 |
5000毫安时 |
5000毫安时 |
|
互联网可更新 |
无线上网 |
无线上网 |
无线上网 |
|
多语言支持 |
√ |
√ |
√ |
|
历史测试记录 |
√ |
√ |
√ |
|
保存和回放数据 |
√ |
√ |
√ |
|
通过 Windows PC 打印数据 |
√ |
√ |
√ |
|
车载通讯方式 |
有线 |
无线（蓝牙） |
无线（蓝牙） |
产品规格：
|
操作系统 |
安卓11 |
|
处理器 |
Cortex-A55 四核处理器 (1.8GHz) |
|
记忆 |
4GB RAM 和 64GB 板载内存 |
|
展示 |
7 英寸 LCD 电容式触摸屏，分辨率为 1024x600 |
|
连接性 |
无线网络（802.11a/b/g/n/ac） |
|
USB 2.0，迷你USB 2.0 |
|
|
无线蓝牙V2.1+EDR |
|
|
HDMI A 型 |
|
|
SD卡（最大支持64GB） |
|
|
传感器 |
光传感器自动调节亮度 |
|
音频输入/输出 |
输入：不适用 |
|
输出：蜂鸣声 |
|
|
电源和电池 |
3.7V/5000mAh锂聚合物电池 |
|
通过 5 VDC 电源充电 |
|
|
输入电压 |
5V/1.5A |
|
工作温度 |
0 至 50°C（32 至 122°F） |
|
储存温度 |
-20 至 60°C（-4 至 140°F） |
|
尺寸（宽X高X深） |
270.8 毫米（10.0 英寸）x 176.0 毫米（6.9 英寸）x 36.0 毫米（1.4 英寸） |
|
重量 |
885 克（2.31 磅） |
|
协议 |
ISO9141-2、ISO14230-2、ISO15765、K/L-Line、闪烁代码、SAE-J1850 VPW、SAE-J1850PWM、ISo11898（高速、中速、低速和单线 CAN、容错 CAN）SAE J2610、GM UART UART Echo 字节协议、本田 Diag-H 协议、TP2.0、TP1.6 |
包裹包括：
1 件 x 主机
1 个电源适配器
1 件 x VCI 迷你
1 份快速参考指南
1 件 x 装箱单
2 根迷你 USB 线
1 块软布
1 件 x 肩带
1 件 x 手提箱
