Specifications
| Mənşə | Çin |
| İdxal olunubmu | No |
| Sifariş nömrəsi | SP402-B |
| Fərdi emal | No |
| Məhsul № | SP402-B |
| Növ | Avtomobil Kompüter Detektoru |
| Diaqnostika Sistemi | Avtomobil Kompüteri |
| Enerji təchizatı gərginliyi | 12 |
| İşləmə temperaturu | -10-55 |
| Ölçü | 61cm * 43cm * 18cm |
| Brend | LAUNCH |
| Model | X431 PRO5 |
| Əsas aşağı axın platformaları | Digər |
| Əsas satış sahələri | Yaxın Şərq |
| Əsas satış sahələri | Digər |
| Səlahiyyətli özəl brendlər var | No |
| Sərhədlərarası ixrac yalnız mövcuddurmu | Bəli |
Description
2024 NEW LAUNCH X-431 PRO5 PRO 5 with Smartlink2.0 VCI J2534 ECU Programming Full System Auto OBD2 Scanner
Product Introduction:
Product Introduction:
X-431 PRO5 is a high cost-effective automotive diagnostic device developed based on Android System. It adopts Android 10.0 System, 4-core 2.0GHz processor, which runs faster and more stable. It is equipped with SmartLink C connector as standard, which supports J2534 standard, DOIP, CAN FD and other protocols. X-431 PRO5 can cover more than 98% of the car models in the market, realize the fault diagnosis of the whole system, and has many advantages such as strong diagnosis function and accurate test data.
Product Highlights:
1.Full vehicle system coverage for over 100 brands in the world, which is continually updated.
2.Support J2534 standard, support DOIP, CAN FD and other protocols with SmartLink 2.0 connector.
3.Supports for testing both cars and Vehicle (Vehicle can be expanded).
4.Automatically identify VIN upon connection to the vehicle for intelligent diagnosis.
5.Guided function for Volkswagen and Audi.
6.33 special functions available.
7.Supports Tire pressure system testing including tire pressure activation, learning, programming, and diagnosis
8.Supports ADAS system calibration(optional) , It can realize the calibration of ADAS systems such as LDW, ACC, RCW, AVM, BSD, and NVS.
9.Supports expansion module: endoscope, X-PROG 3 and BST-360.
Product Features:
Features for X-431 PRO 5:
1. Innovative DUAL diagnostic mode: traditional local diagnosis and SmartLink super remote diagnosis
2. 33 special functions by local diagnosis, more by SmartLink remote diagnosis
3. Android 9.0 operating system for exceptional convenient, fast and efficient vehicle diagnosis
4. Intelligent diagnosis: quickly read vehicle VIN and license plate, check historical diagnostic and rapidly enter diagnostics.
5. Strong diagnostic function with accurate diagnostic data for all systems
6. Guided function for VW and Audi
7. Extend modules of LAUNCH videoscope and IMMO key matching
8. Support ADAS calibration
9. Multiple query services: view reports, diagnostic records and Check testable models

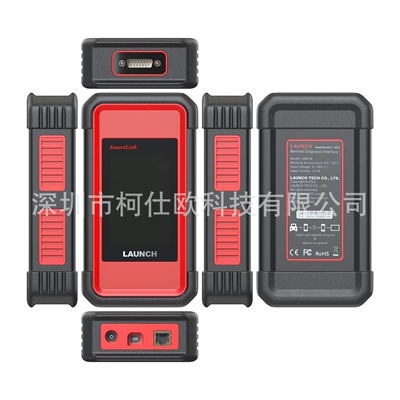

Features for SmartLink C:
1. Powerful VCI
2. Local J2534 tool
Product Specifications:

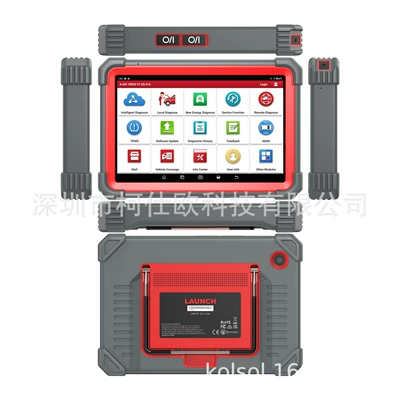

Tablet Parameters( X-431 PRO5)
CPU: 2.0GHz 4-core
OS: Android 10.0
RAM: 4GB
ROM: 64GB
Display: 10.1 inch
Resolution: 1280*800
Camera: 5MP(Front), 8MP(Rear)
Wi-Fi: 2.4GHz/5GHz （Dual frequency）
Working Temperature: 0~50℃
Size: 274 *190.5 *39.5(mm)

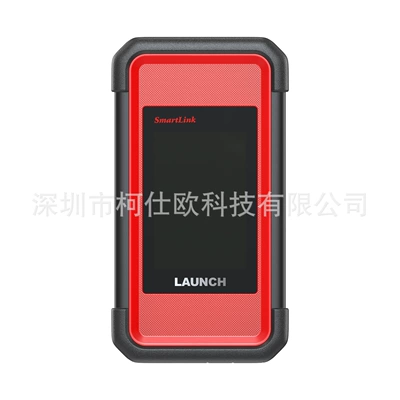

VCI Parameters(SmartLink C)
Processor: Cortex-A7+Cortex-M7
OS: Linux
RAM: 256M
ROM: 8GB
Display: 3.5 inch touch screen
Wi-Fi: 2.4GHz/5GHz dual-band
Diagnostic Communication: WiFi&BT&USB
Test Voltage: DC 9~36V
Working Temperature: 0~50℃
Size: 204*110*45 (mm)

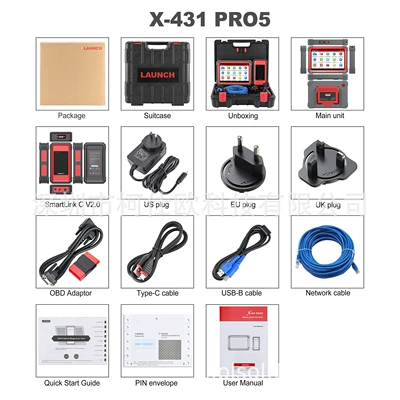

Package Includes:
1pc x main unit
1pc x SmartLink C V2.0
1pc x US plug
1pc x EU plug
1pc x UK plug
1pc x OBD adapter
1pc x Type-C cable
1pc x USB-B cable
1pc x Ethernet cable
1pc x for K-20 adapter
1pc x for K-20 adapter
1pc x for HA-3 adapter
1pc x for G/V-12 adapter
1pc x for FD-6+1 adapter
1pc x for CR-6 adapter
1pc x for TA-17 adapter
1pc x for TA-22 adapter
1pc x for NN-14+16 adapter
1pc x for MH-12+16 adapter
1pc x for B-20 adapter
1pc x for BZ-38 adapter
1pc x cigarette lighter cable
1pc x for BZ-14 adapter
1pc x battery clamps cable
1pc x box
6pcs x fuses
1pc x quick start guide
1pc x PIN envelope
1pc x user manual
