Cross-border Fgtech Galletto 4 V54 Fg Tech V54 FW 0475 Master Stable Version

Weight: 0.8KG

Package：23cm*16cm*7cm

生产批次不同，产品可能升级包装或外观或颜色等，图片仅供参考，如需最新信息请咨询客服。

产品专供外贸平台批发零售，不提供软件安装以及使用指导等技术支持，国内个人用户谨慎下单，感谢理解。

Latest Version V54 FGTech Galletto 4 Master BDM-OBD Function

Top 6 Reasons To Get FGTech Galletto 4:

1. Latest Version: V54

2. Supported Operating System:  windows XP. more friendly than Fgtech v53 , much easier to operate

3. Unlock Version: Can Use Directly. No Need To Activate

4. FGTECH V54 PCB board

5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish

6. Support Tricore Function

FG Tech Galletto 4 Maste Description:

FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode, checksum.

V54 FGTech Galletto 4 Boot Mode System:

NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON

Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF

New Delphy DCM3.5xx DCM3.7xx TRW

Motorola Freescale MPC 555/556/561/562/563/564/565

Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB

Motorola MC 68376 Campi 01 Lamborghini - Lotus

Motorola MC 68336 MEMS D5 ROVER

Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG

New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac

New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu

FGTech Galletto 4 Automatic Checksum:

All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso

Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens

Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507

Motorola Freescale MPC 555/556/561/562/563/564/565

Freescale MPC 5553/5554/5565/5566

BDM

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

Can Bus V2.0 50Kb > 1000Kb

J1850 VPW PWM GM -FORD

Rx Tx RS232,

RS 485,

Automatic setup Pull up K-L line 250, 500, 1000 ohm,

Automatic setup termination Can bus 0, 60,120 ohm,

FGTech Galletto 4 Master Version:

Recovery Mode Completa

Funzione scan tool per eliminare i DTC

Function scan tool for erase the DTC

Controllo tensione di batteria auto in tempo realeCheck tension of battery car in real time

FGTech Galletto V54 FAQ:

Q1: FGTech Galletto 4 can cancel EGR gestion via OBD?

A1: Sorry, at present it still can not do this function, it just can read and write the Data of Engine ECU

Q2: I have got my package. but the CD is broken, where and how can i get the software?

A2: I am really sorry for this. Please download FG Tech Galletto 2 V54 Software

Q3: Can Fgtech V53 update directly to Fgtech Galletto 4? and use Fgtech Galletto 4 software?

A3: Sorry, it can not update directly. If you want fgtech v54, you need to buy new fgtech.

Q4: Can Fgtech V54 do this ecu Bosch EDC16 BMW(P3)?

A4: Yes, it can do.

Q5: After i install the software. it ask me to update it. can i ?

A5: Please do not update it. just close that notice.

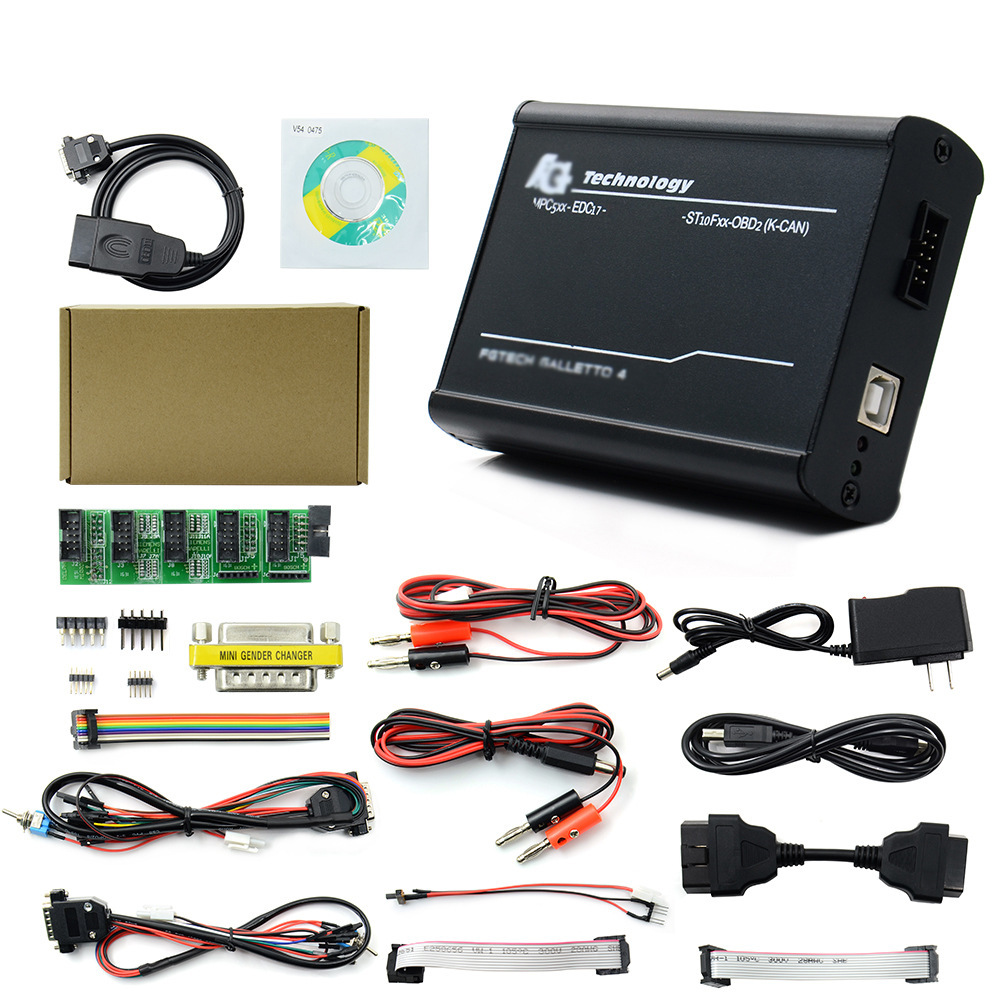

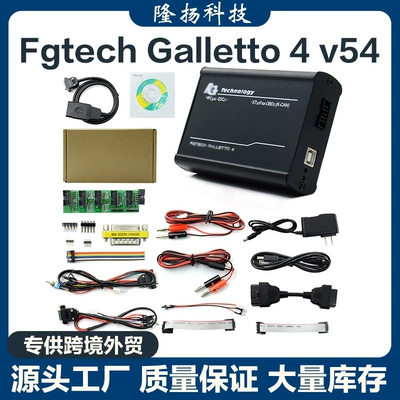

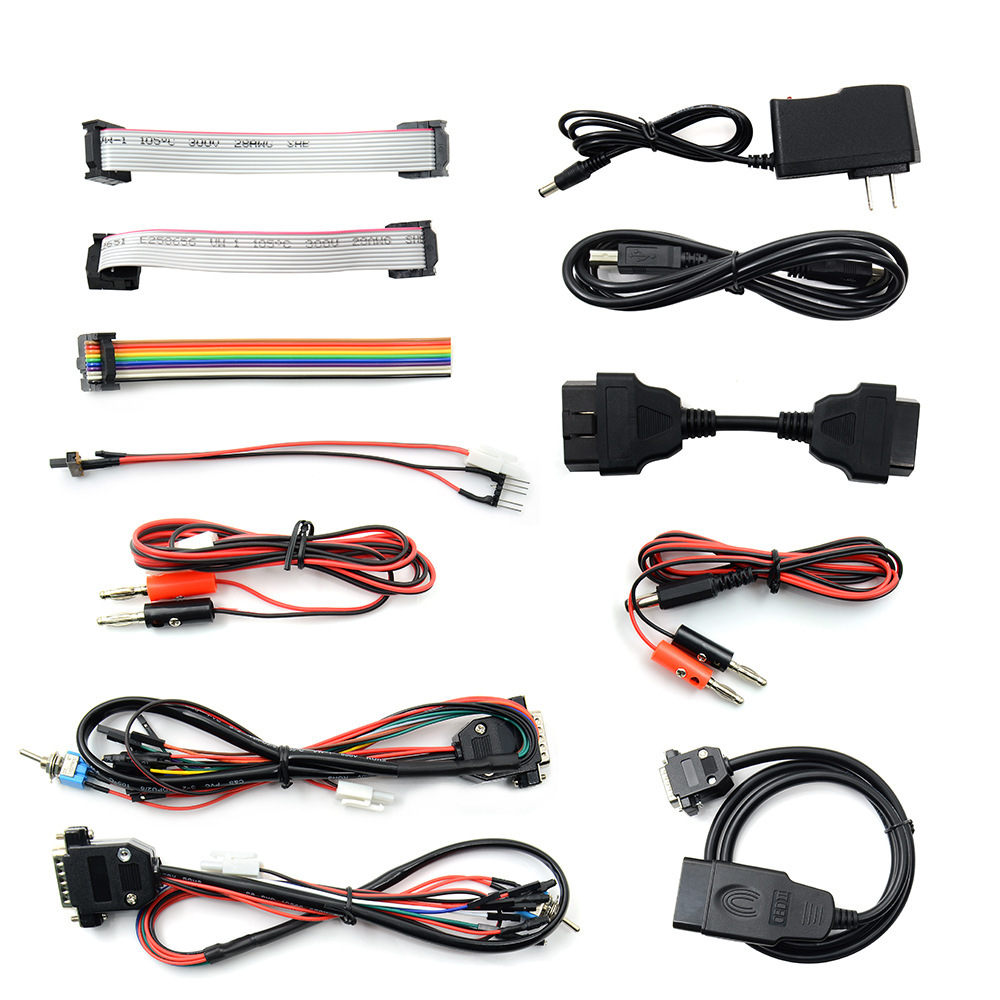

FGTech Galletto V54 Package List:

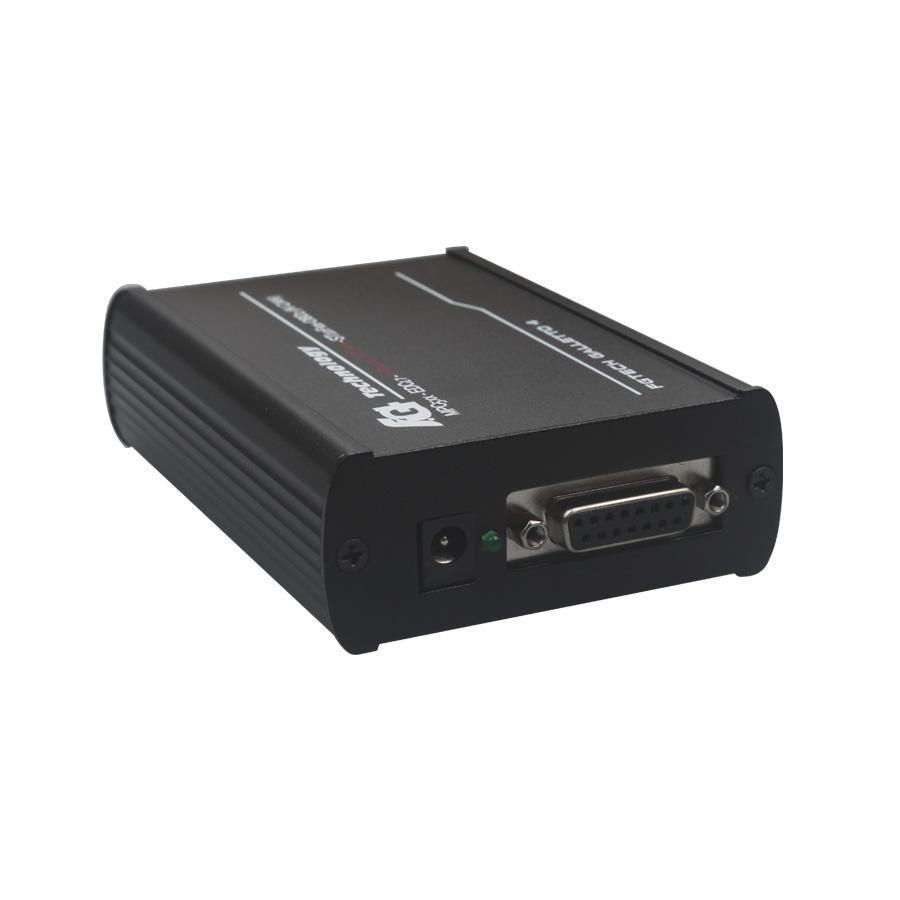

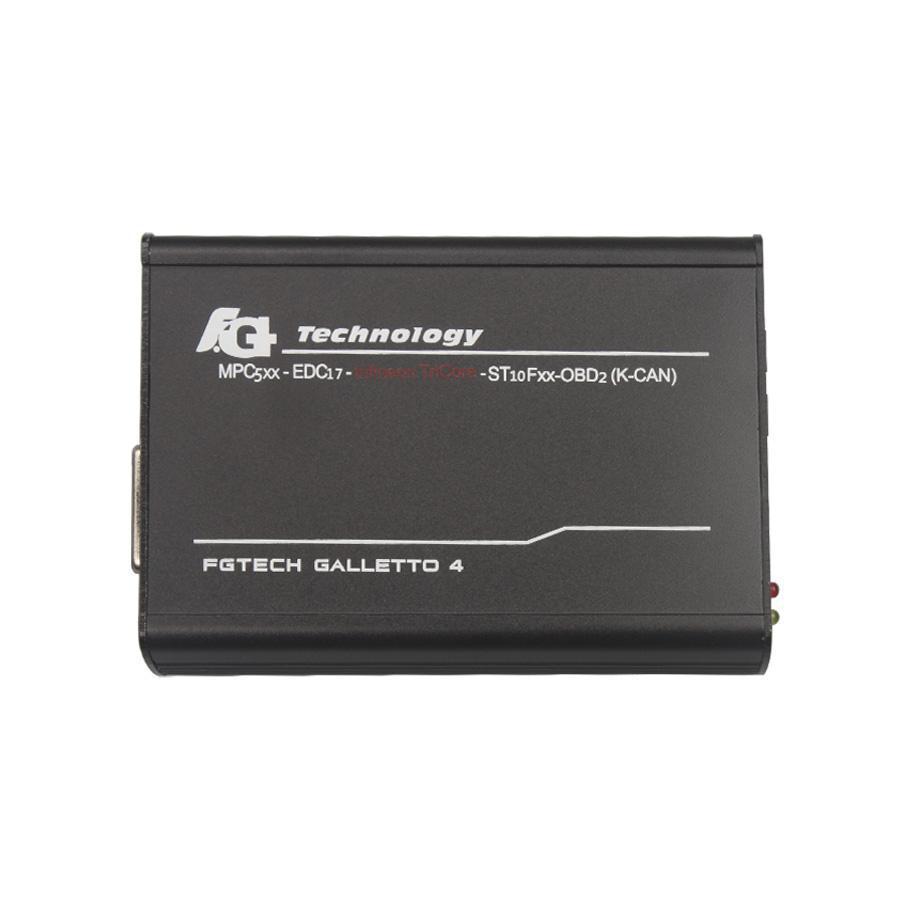

1pc x New Version Main Interface

1pc x ECU Cable for Boot

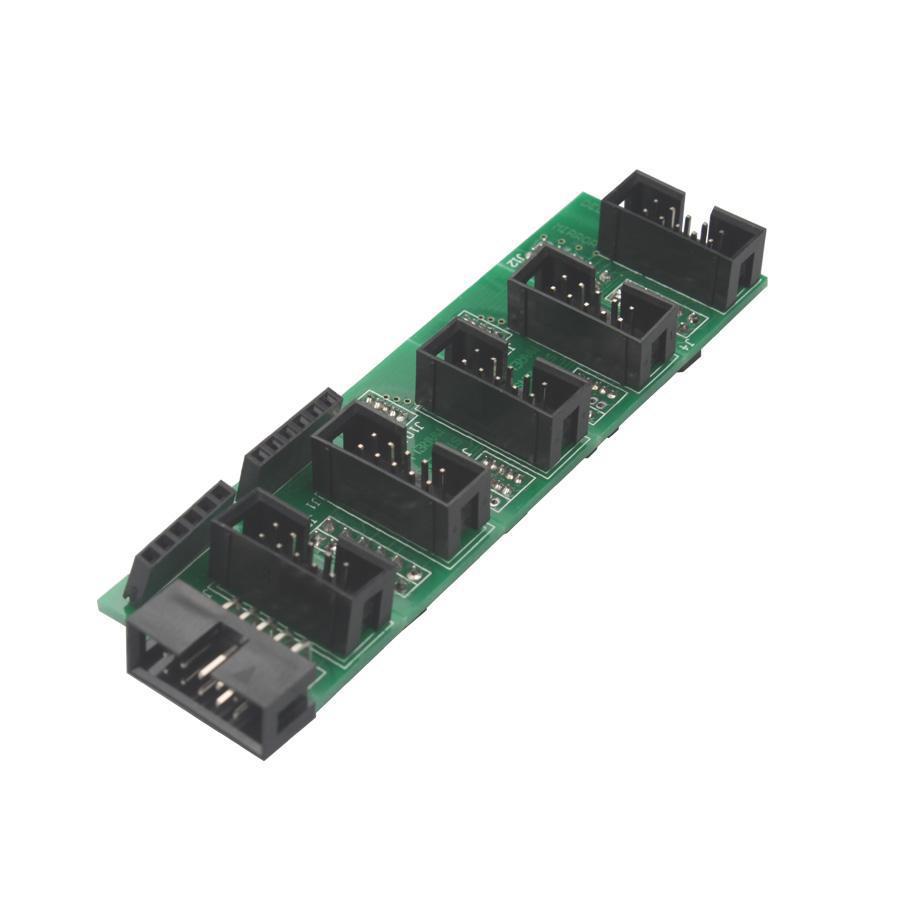

1pc x Adapter for BDM to CMD with BDM Cables

3pcs x BDM Adapters

6pcs x BDM Connectors

2pcs x Power Cable

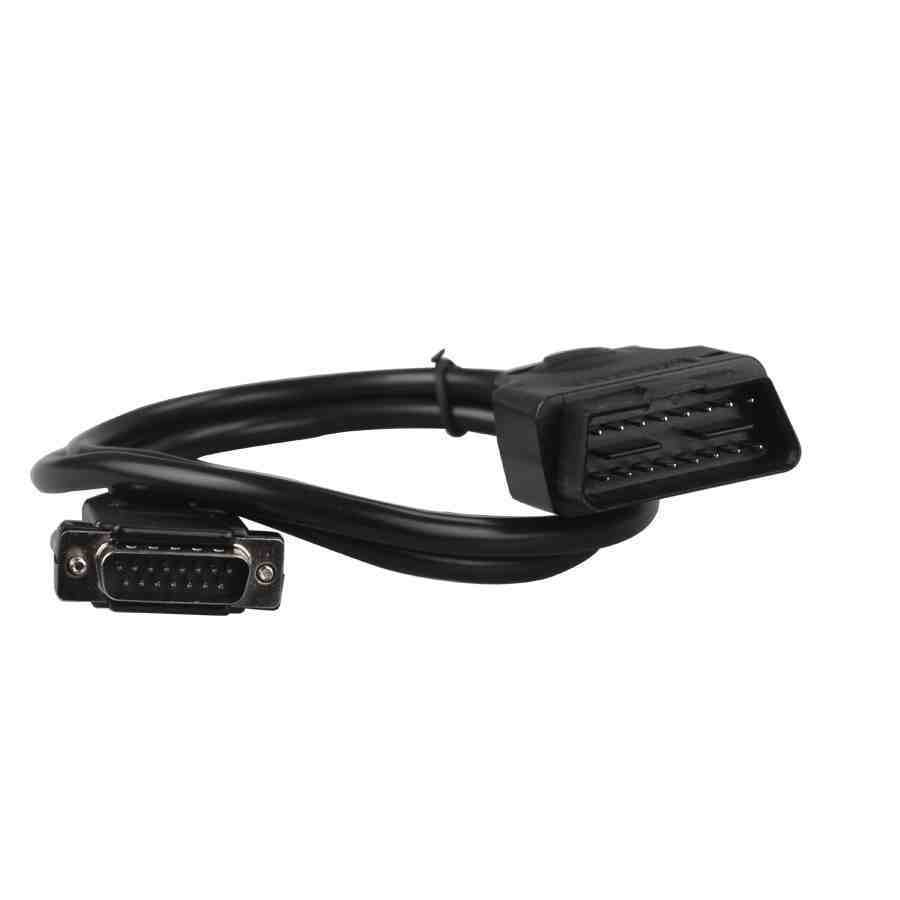

1pc x OBD2 Cable

1pc x USB Cable (1.5meter)

1pc x CD (2012 Version SW -MASTER, Documents PDF, Pictures, etc.)
